Description

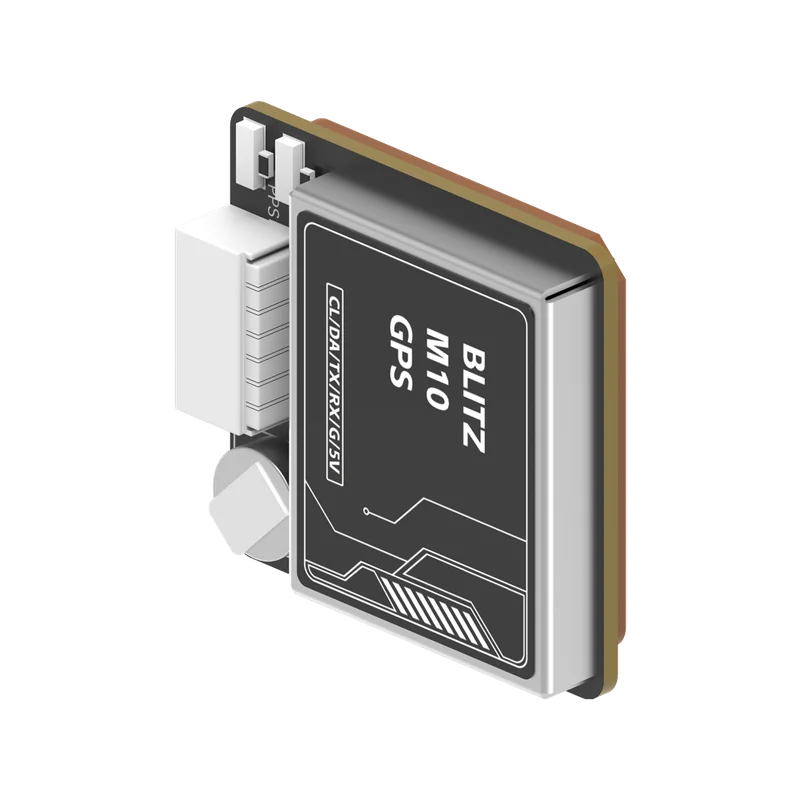

iFlight BLITZ M10 GPS SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 20*21*6.5mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: BLITZ M10 GPS
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
： Features：
- UBLOX M10 chip
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- Onboard LNA (Low Noise Amplifier)
- 10 Hz Refresh rate
- Built-in Flash
- High sensitivity 18x18mm GPS patch antenna. low power consumption. strong signal. lightweight.
Specifications:
- Compass module: QMC5883L
- Baud Rate: 4800bps-115200bps (Default – 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 26s
- Hot start: 1s
- Maximum height: 50000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 18 x 18 mm
- Total dimensions: 20 x 21 x 6.5 mm
- Weight: 5.2 g（±0.5g）
- Input Voltage: 3.3-5.5 V. current 40mA
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
Package included:
- 1 x BLITZ M10 GPS
- 1 x Cable set
