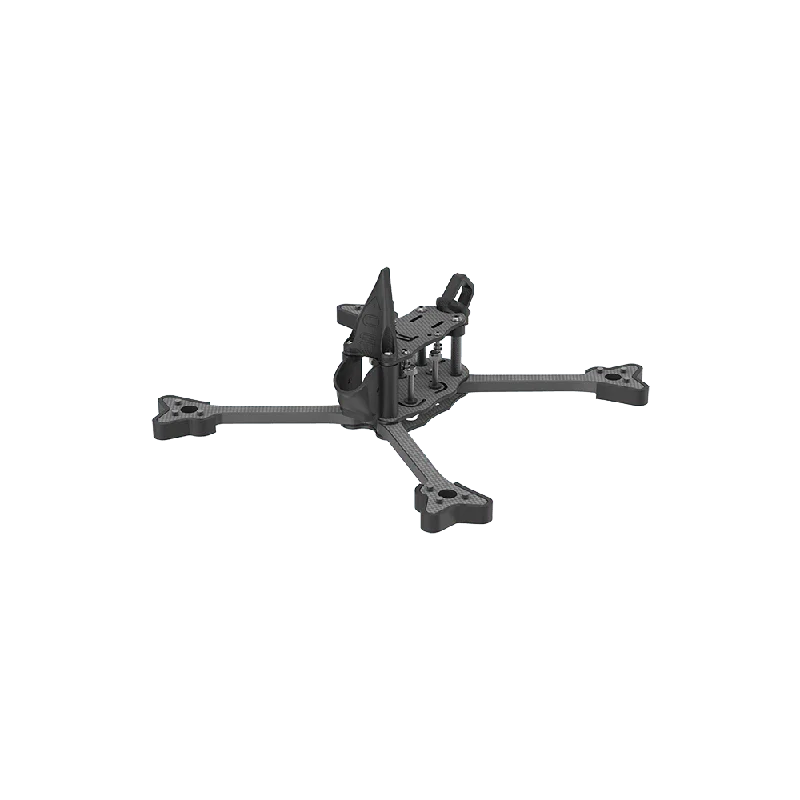

iFlight AOS 5R 5″ Frame Kit

Description

Redefining state of the art in FPV drone racing. The AOS 5R V5 is designed with cutting-edge patent pending technology to give you an edge over the competition.

Be sure to browse the rest of our iFlight products and DJI compatible frames, electronics and accessories.

Features

• Supports up to 5.3″ Props
• AOS X-Cell Anti-Vibration Technology
• 20×20 mm M3 flight stack
• 25.5×25.5 mm OR 20×20 mm M2 top plate mounting
• 20mm standoff spacing fits most existing 3D prints for 14mm camera, shark fin, and VTX antenna
• 50mm stack clearance front to rear fits even the largest 20×20 M3 ESCs
• ⌀16mm motor mounting (supports all standard 5″ motors)

Specifications

• Product Name: AOS 5R Frame Kit
• Frame wheelbase: 201mm
• Frame Dimension: L142xW142xH38 mm
• Arm Thickness: 6mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 2mm
• Upper Plate Thickness: 2mm
• Max Flight Stack Height: 25mm
• Max VTX Height: 25mm
• Motor Mounting: 16×16-φ3mm
• Flight Stack Mounting: 20×20 Φ3mm
• VTX Mounting: 20×20/Φ2mm 25.5×25.5/Φ2mm
• Weight: 90g
• Compatible: Vista HD system/ BLITZ mini 1.6W VTX

Includes

• 1x iFlight AOS 5R 5″ Frame Kit
