Hot Racing 100mm Internal Spring Air Shock (Red) (2)

Description

Hot Racing 100mm Internal Spring Air Shock. These optional shocks are great for scale crawlers, comp crawlers and even custom builds.

NOTE: Recommended to use Team Associated Green Slime ASC1105 on lower O-ring seals to assist sealing and increase smoothness

Features:

• CNC machined aluminum shock bodies, black anodized
• CNC machined aluminum upper shock cap with O-ring seal, red anodized
• CNC machined aluminum lower shock cap with shock shaft guide, red anodized
• Precision machined 7mm stainless steel shock shaft for durability
• Double O-ring lower shaft seal
• Air damping
• Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
• All aluminum is anodized for durability, corrosion resistance, and great looks

Specifications:
Extended center to center length: 100mm (3.9 inch)
Compressed center to center length: 68mm (2.7 inch)
Overall length: 108mm (4.3 inch)
Body diameter: 13mm (0.5 inch)
Shaft diameter: 7mm (0.3 inch)

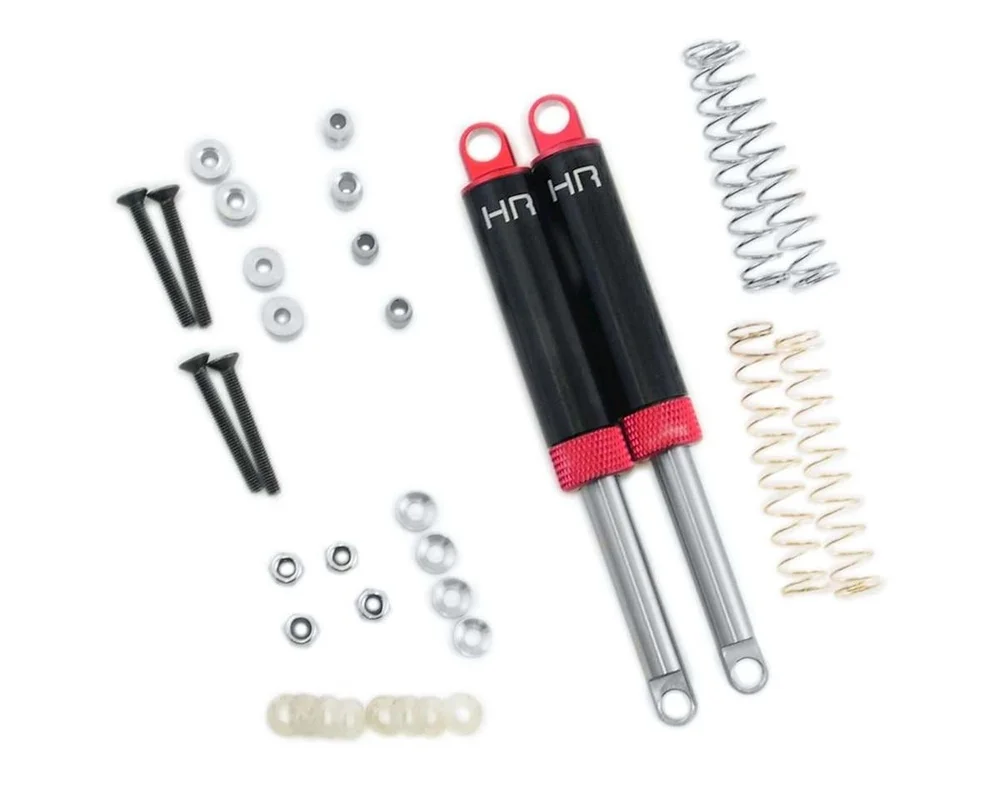

Includes:

• (2) assembled shocks
• (2) gold (soft) springs
• (2) black (medium) springs
• (2) silver (stiff) springs
• (2) 4.8mm ball mounts
• (2) 5.8mm ball mounts
• (4) 5x7mm offset spacers
• (4) 3mm countersunk washers
• (4) 3x25mm flat head cap screws
• (8) 3mm O-rings
• (4) lock nuts

This product was added to our catalog on February 26, 2019
