Description

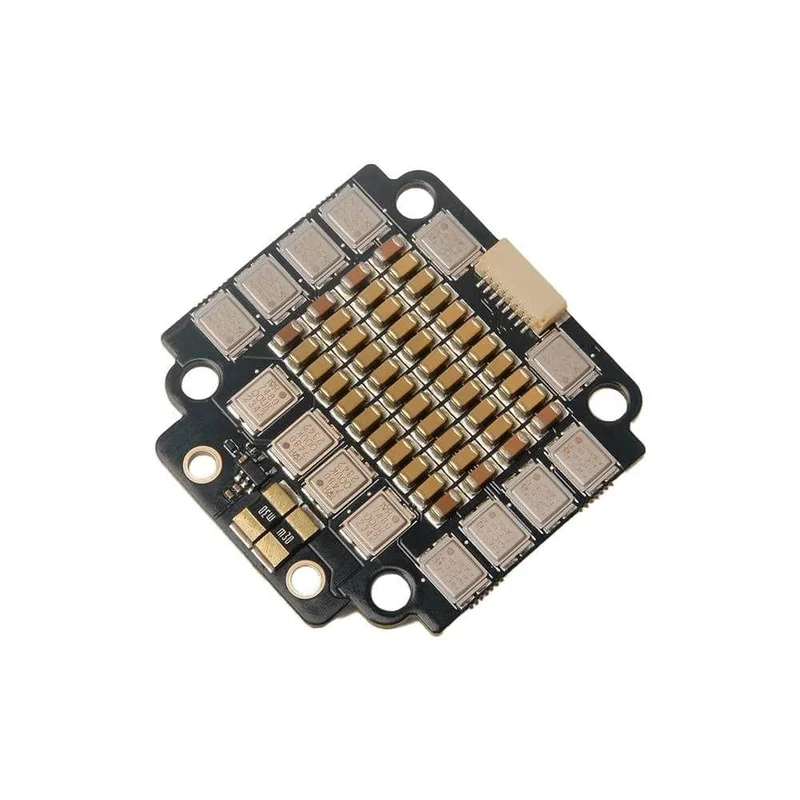

The Holybro Tekko32 F4 Metal 65A AM32 is the first 4-in-1 ESC on the market to adapt the fast F4 MCU. Updated to run on open-source AM32 firmware, it offers enhanced control and quick response.
Check out all our 30×30 ESCs and the rest of our HolyBro selection!
Features
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit broadens the current capability of the drive circuit while reducing electrical interference to the control circuit.
Specifications
- Continuous Current: 65A x4
- Burst Current: 75A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry supported
- Onboard analog current sensor
- No output BEC
- AM32 firmware (target: AM32_TEKKO32_4IN1_F421)
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 180
- Dimensions: 43 x 44mm / Weight: 15.8g
- Mounting holes: M4 30.5×30.5mm (M3 grommets included)
IMPORTANT NOTES
- Airflow for the ESC is very important if you want to run this 4in1 in a high current. The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.
Links
- Tekko32 F4 Metal 4in1 ESC(65A) SPEC
- ESC Current Sensor Scale
- AM32 ESC Firmware Overview
Includes
- 1 x Tekko32 F4 Metal 4in1 65A ESC
- 4 x M3 Anti-Vibration Silicone Grommet Insert
- 1 x Electrolytic capacitor: 1000uF 35v
- 1 x 8-pin to 8-pin 1mm pitch 65mm cable
- 1 x 8-pin to 8-pin 1mm pitch 25mm cable
