Description
** Discontinued – New Version Here **

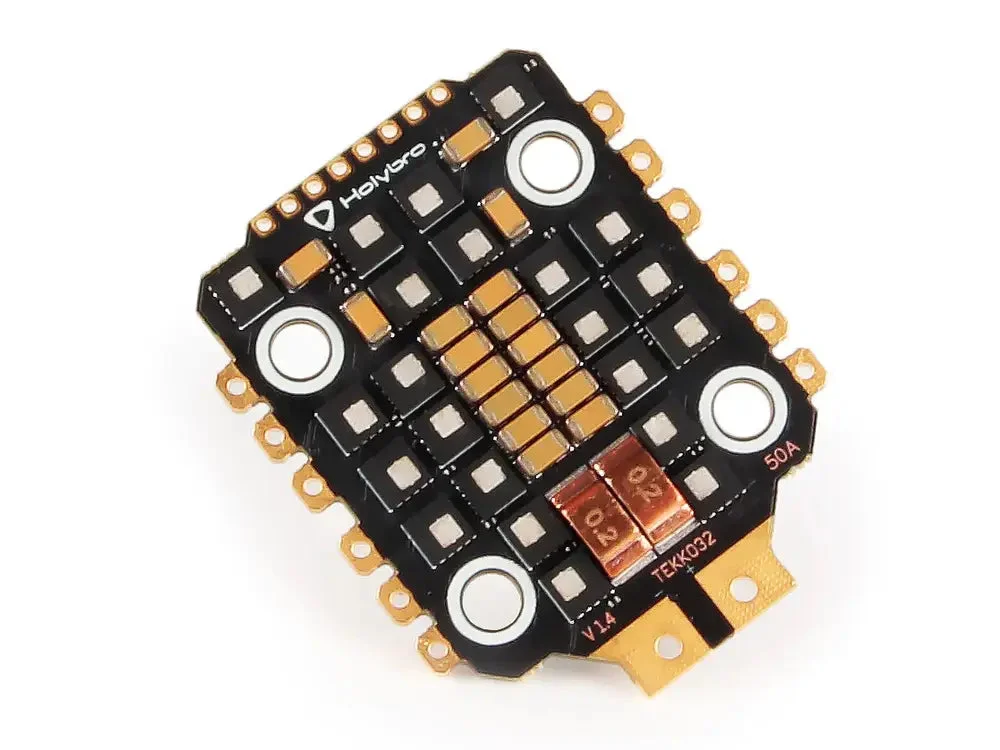

The Holybro Tekko32 F4 50A Mini BLHeli_32 4-in-1 ESC features high-quality MOSFETs for reduced internal resistance and improved heat dissipation. Its F4 MCU allows for smooth performance and faster operation. With a separate drive & control circuit, expect reduced electrical interference and cleaner power throughout your whole system.
Specifications:
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimension: 32 x 40 mm
Pinout:
Includes:
1x Holybro Tekko32 F4 50A Mini 4-In-1 ESC
4x M2 Anti-vibration silicone Grommet Inserts
4x M3 Anti-vibration Silicone Grommet Inserts
1x Electrolytic Capacitor 1000uF 35V
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
