Description

Holybro M9N GPS Module SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Landing Gear

Quantity: 1 pcs

Origin: Mainland China

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

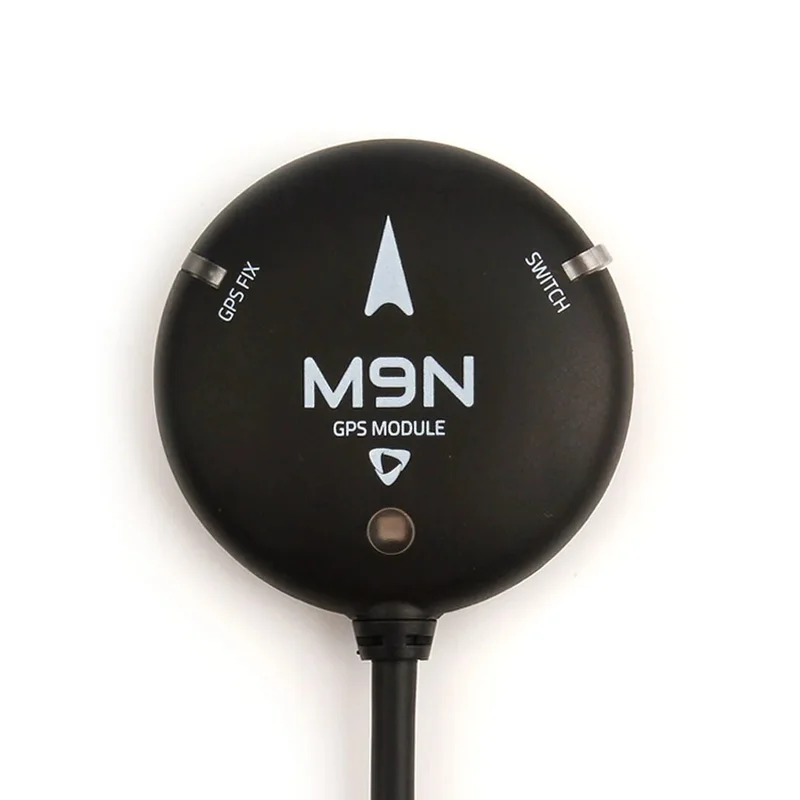

2021 New Holybro M9N GPS Module with Compass LED Indicator for Pix32 Pixhawk 4 Flight Controller

s：

The M9N GPS has an UBLOX M9N module. IST8310 compass. tri-colored LED indicator. and a safety switch. There are 3 different connectors options for different purposes.
This module ships with a baud rate of 115200 5Hz

Features and Specifications:

– Ublox Neo-M9N module
– Industry leading –167 dBm navigation sensitivity
– Cold starts: 26s
– LNA MAX2659ELT+
– 25 x 25 x 4 mm ceramic patch antenna
– Rechargeable Farah capacitance
– Low noise 3.3V regulator
– Current consumption: less than 150mA @ 5V
– Fix indicator LEDs
– Protective case
– 26cm cable included
– Diameter 50mm total size. 32 grams with case.

Package Included:

M9N GPS Module *1
‘X’ type folding pedestal mount *1
Carbon rod 70mm & 140mm *1

Pin Map

Dimensions

cube Maan/mIN Yr# GPS Sk1i# 12029: Ixaihas G pin Cjble aid are €C “padoie Cube Fieni Lontol eGpscor Foalod MBN
