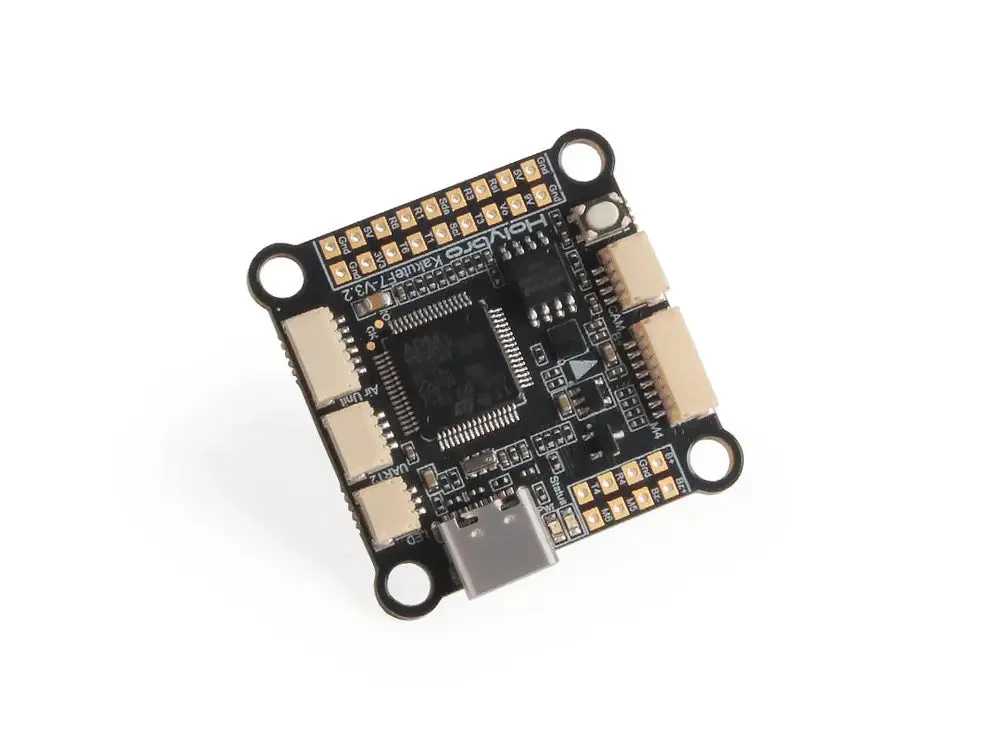

Holybro Kakute F722 Flight Controller

Description

With Holybro Kakute F722 Flight Controller, experience top-notch performance and unparalleled quality. Featuring the ICM42688P gyro and low-noise power supply, this flight controller is a dream for anyone seeking precision and efficiency. Suitable for any demanding mission, this flight controller is destined for your next build.

Features:

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
• Built-in analog video OSD, 16 Mbytes black box,
• High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.

Specifications:

• MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
• IMU: ICM42688-P (SPI)
• Barometer: BMP280
• OSD: AT7456E
• 5x hardware UARTS (UART1,2,3,4,6)
• 7x PWM Outputs (6 Motor Output, 1 LED)
• Onboard 16 Mbytes for Blackbox logging
• Battery input voltage: 3S – 8S
• BEC: 9V/3A, 5V/2A, 3.3V/0.2A
• Connector
  • 2x JST-SH 8pin port for ESC
  • 1x JST-SH 6pin port for HD VTX
  • 2x JST-SH 4pin port for Receiver & Analog Camera
  • 1x JST-SH 3pin port for LED
• USB Type -C
• Dimensions: 35x35mm
• Mounting Holes: Standard 30.5 x 30.5
• Weight: 8g
• Firmware Targets:
  • Betaflight Target: KAKUTEF7MINIV3
  • INAV Target: KAKUTEF7MINIV3

Includes:
1x Holybro Kakute F722 Flight Controller
4x M3 Silicon Grommets
1x JST-SH-1.0_8pin 150mm Calbe (For ESCs)
2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD system and others)
1x JST-SH1.0_4pin to Dupont 150mm Cable
1x JST-SH1.0_3pin to Dupont 150mm Cable
1x JST-SH1.0_4pin to Molex 1.25 150mm Calbe

Download Manual
