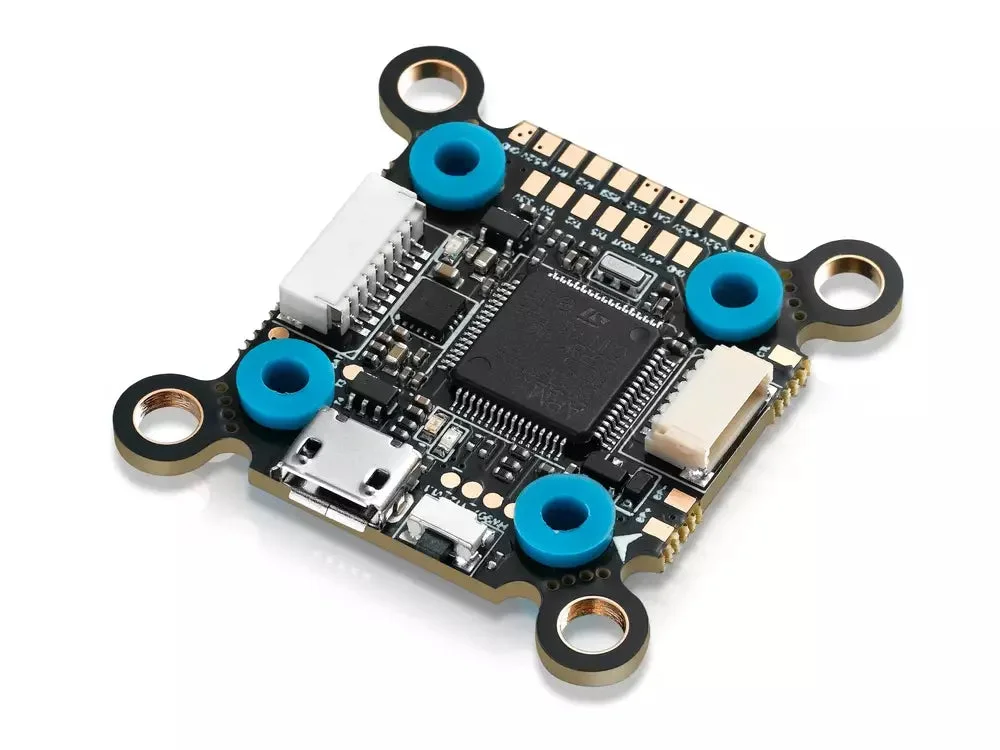

Hobbywing XRotor F7 Convertible Flight Controller

Description

Hobbywing’s XRotor F7 Flight Controller features a unique ability to convert from a 30×30 mm mounting to 20x20mm.  You can snip off the holes on the corners.  This flight controller features the powerful STM32F722 MCU, dual 5V & 12V BEC, built-in OSD chip, plug and play with DJI Digital FPV, and on-board flash memory for blackbox logging.  This board was designed with the user in mind, it is easy to work on and stabilized with anti-vibration grommets and convenient plugs for connecting to Hobbywing XRotor 65A 4-In-1 ESC.

Specifications:

• Size:  32x32mm
• Weight:  3.3g
• USB Port:  MicroUSB
• BEC:  5V @1.5A; 10V @1.5A
• LED Control:  Supported
• External Buzzer:  Supported
• Current Monitoring:  Supported
• Voltage Monitoring:  Supported
• OSD:  Betaflight OSD Built-in
• Firmware:  HOBBYWING_XROTORF7CONV
• Gyro:ICM20602
• MCU:STM32F722

Includes:
1x Hobbywing XRotor F7 Convertible Flight Controller

Download Manual
