Servo Overview:

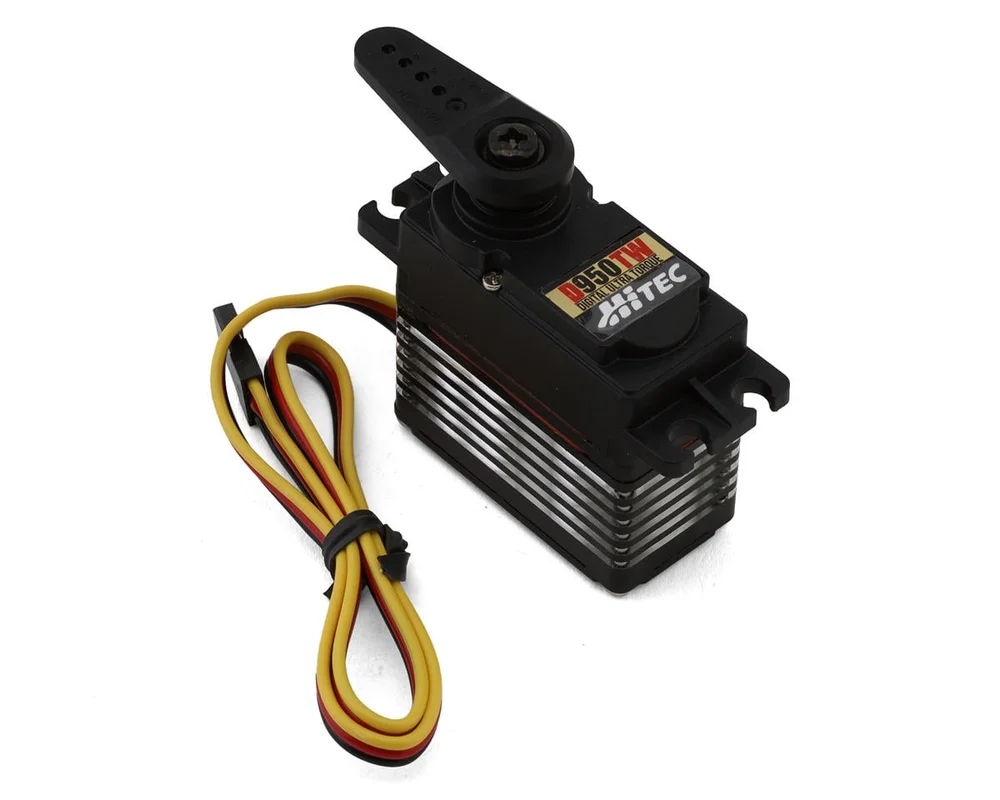

Hitec D950TW Titanium Geared Brushless Servo. The Hitec D-950TW is a standout in Hitec’s D-Series dynamo servo lineup, featuring advanced, custom engineering. This servo integrates cutting-edge high-resolution and ultra-response technology, powered by a 32-bit MCU and 12-bit ADC, for unparalleled programmability and smooth operation. Capable of running on a broad voltage range of 4.8 to 8.4 volts, it accommodates various battery chemistries without needing adapters or regulators. Equipped with Hitec’s standard 25-tooth output spline and 3mm hex screw, the D-950TW delivers exceptional performance.
Features:
- Wide Operating Voltage (4.8 ~ 7.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Specifications:
- Speed:
- @4.8V: 0.23sec/60°
- @6.0V: 0.17sec/60°
- @7.4V: 0.14sec/60°
- Torque:
- @4.8V: 292oz-in (21kg-cm)
- @6.0V: 403oz-in (29kg-cm)
- @7.4V: 486oz-in (35kg-cm)
- Motor: Brushless
- Operating Voltage: 6.0V-7.4V
- Dimensions(LxWxH): 1.57×0.79×1.50″ (40x20x38mm)
- Weight: 68g (2.4oz)
- Operating Spline: 25T
Includes:
- (1) D950TW Titanium Geared Brushless Servo
This product was added to our catalog on August 7, 2024
