Description
A high quality brushless outrunner. A great option for planes like the Skywalker, Skyhunter, and MTD (2x).
• Heavy duty motor mount, prop adapter & connectors included,
• Advanced designs – dual ball bearing & powerful magnet,
• Replaces Axi-28 series motors.

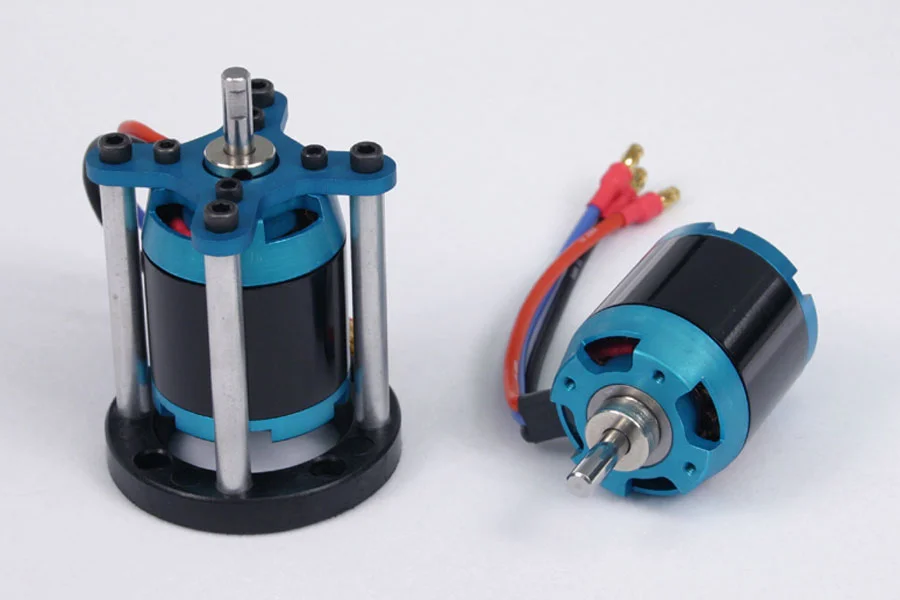

To mount using included collet style prop mount, you must either use the mounting bracket included and shown in the image, or you need to reverse the shaft, which may require a press because of the tight tolerances.
HC3516 -This 350 watt motor is for midsize models weighing 34-45 oz for 3-D flight, up to 56 oz for aerobatic flight and up to 70 oz for leisure flight.
• Gas equivalent – .20 – .30
| Part No. | Dia mm | Length mm | Weight g | Shaft Dia | Prop Size* | ESC Rating | Kv | Rm | Io |
| HC3516-1350 Learn more |
35.2 | 42.2 | 134 | 5mm | 9×6-12×6 | 45+ | 1350 | .023 | 2.3 |
*Caution – Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.
As with any standard speed controller that uses a linear voltage regulator, if you are running more than 3 or 4 servos or other equipment from the 5V line, it is recommended you use an external BEC and bypass the built in BEC in the ESC.
