Description

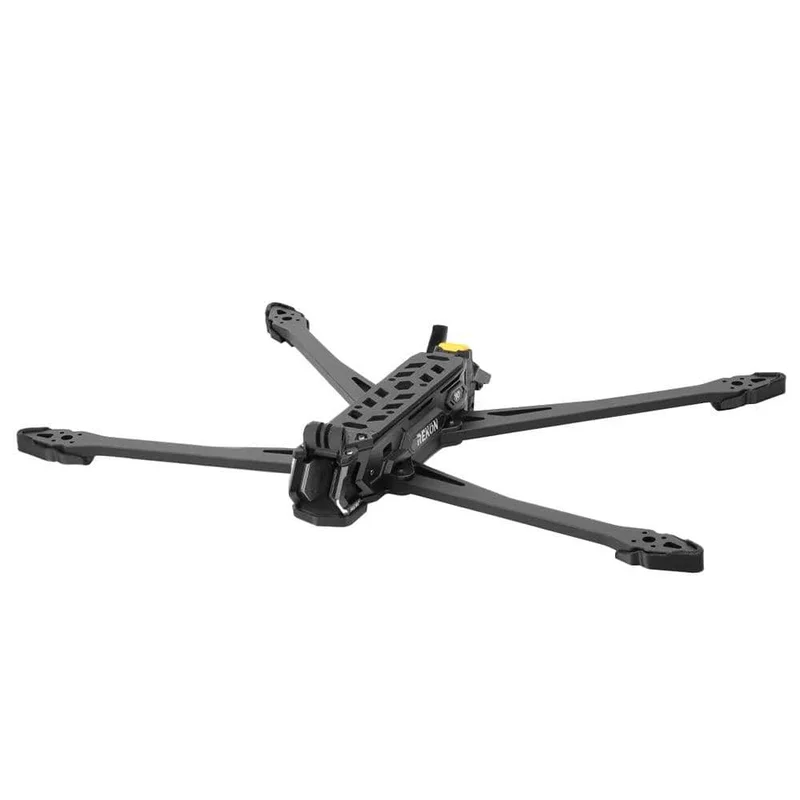

The HGLRC Rekon10 Pro V2 Frame Kit is a beast designed for the most challenging long-range missions! The weight and momentum of this 10” quad give it stunningly high cruising speeds and wind resistance for high-altitude mountain dives. This updated version of the classic Rekon10 features reinforced & detachable components and a sleeker aesthetic for an improved flight experience.
Check out our other DJI-compatible frames, electronics, and accessories as well as the rest of our HGLRC gear!
Features
- Unique triangular reinforcement structure provides a more stable flight platform and more thorough noise suppression.
- The front features a CNC aluminum component, combining aesthetics with durability for better camera protection.
- Customizable vibrant RGB lighting effects make flying more dynamic.
- Adopts a detachable, vertically-mounted antenna design, compatible with the latest ELRS dual-frequency receivers for a more stable flight link.
- 10-inch platform, designed for larger motors and professional equipment, is the ideal choice for extreme-condition flights and as a productivity tool.
Specifications
- Frame: HGLRC Rekon10 PRO V2 Frame
- Type: 10-inch Frame
- Top Plate Thickness: 2mm
- Middle Plate Thickness: 3mm
- Bottom Plate Thickness: 3mm
- Arm Thickness: 8mm
- Wheelbase: 474mm
- Flight Controller Mounting Holes: 30.5mm x 30.5mm, M3 /20mm x 20mm, M3
- VTX Mounting Holes: 25.5mm x 25.5mm, M2 /20mm x 20mm, M2 /30.5mm x 30.5mm, M3
- Motor Mounting Holes: 19mm x 19mm, M3
- Camera Lens Mounting Hole: 19-20mm
- Overall Dimensions: 498mm x 327mm
- Frame Weight: 567g ±5g (Includes antenna mounts, screws, and anti-slip pads)
Links
- Frame Assembly Guide
Includes
- 1x Rekon10 Pro V2 Frame Kit
- 1x 3mm Bottom Plate
- 1x 3mm Middle Plate
- 1x 2mm Top Plate
- 2x Front Arm
- 2x Rear Arm
- 1x XT60EW-M Male Plug Connector
- 1x Adapter
- 2x Side Plate
- 2x Camera Vibration Damping Pad
- 1x Camera Mount
- 1x 915MHz Antenna mount
- 1x Anti-Spark Module
- 1x Heatsink
- 1x Frame Limiter
- 1x Battery Anti-Slip Pad
- 2x Battery Strap 25x350mm
- 1x Front Bumper Protector
- 1x Dual Antenna Mount
- 4x PVC Transparent Black Wire Sleeve
- 2x Power Cable
- 2x Double-Ended 4-Pin Cable
- 1x Double-Ended 6-Pin Cable
- 4x Foot Pad
- 2x CNC Nose Piece
- 1x Cable Management Clip
- 1x 3-in-1 Printed Part
