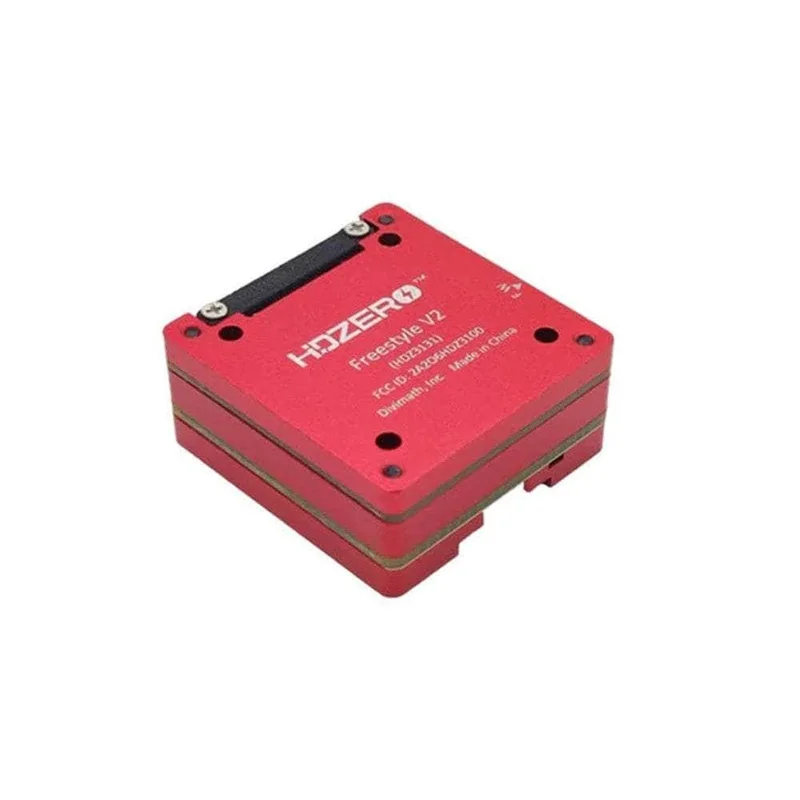

HDZero Freestyle V2 20×20 25-1000mW Digital HD VTX – U.FL

Description

HDZero Freestyle V2 VTX is the second generation 5.8GHz digital video transmitter, perfect for most 3.5-inch and 5-inch drones. It comes in a CNC case that guarantees protection and durable RF shielding with improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. Moreover, the antenna and MIPI cable are secured with a retention bar and screws. This VTX supports 720p60, 1080p30, 540p60, and 540p90 video modes.

This VTX can fit most frames that can accommodate the Caddx Vista/Runcam Link VTX.

Check out all our VTXs and our HDZero selection.

Specification

• Manufacturer:  Divimath, Inc
• Model:  HDZero Freestyle V2 VTX
• Weight:  22.3g
• Dimensions:  29x30x14mm
• Operating Frequency:  5.725-5.850GHz
• Transmitter Power:  25mW, 200mW, XXXXmW
• Mounting Pattern:  20x20mm M2 Holes
• Antenna Interface:  Secured u.FL
• Video In:  Secured MIPI
• SmartAudio:  YES
• MSP Canvas Mode:  YES
• Input Power:  7-25V
• Operating Temperature:  32F-104F (0-40C)
• Power Consumption:  6-15W

Includes

• 1xHDZero Freestyle V2 20×20 25-1000mW Digital HD VTX – U.FL
• 1x Power Cable
• 1x SA Cable
• 1x Plastic bar for MIPI Cable with 3x Screws (M1.4 x 2mm)
• 1x Plastic bar for U.FL with 3x Screws (M1.4 x 8mm)
• 1x Double Sided Tape (29 x 30 x 1mm)

Wiring Diagram
