Description

Hawkeye Firefly Fortress Micro FPV Camera SPECIFICATIONS

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Receivers

RC Parts & Accs: Transmitters

Model Number: Mini Camera+VTX

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

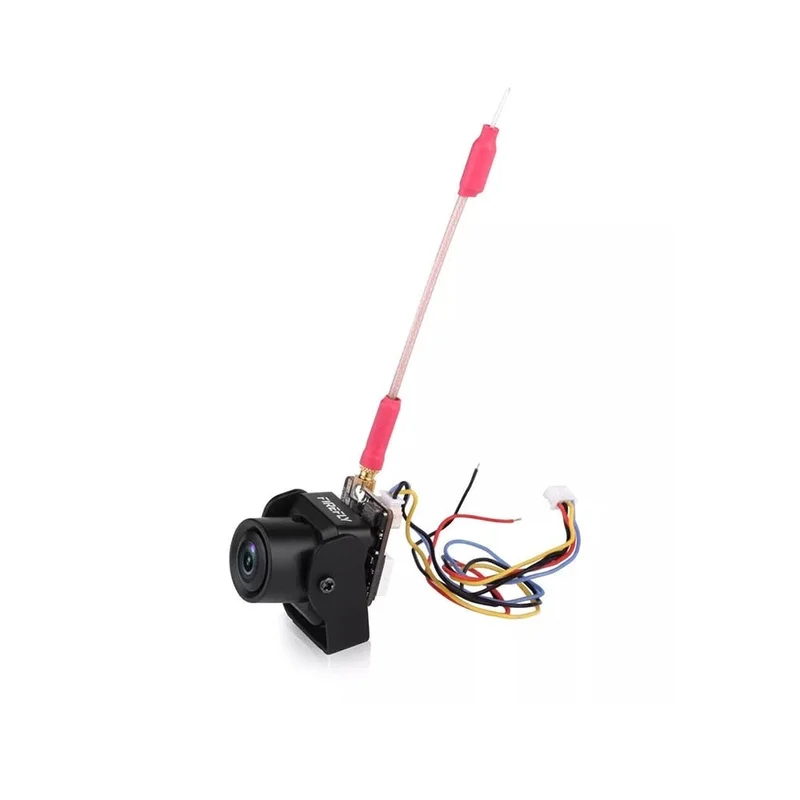

Hawkeye Firefly Fortress Micro FPV Cam AIO 2.1mm 1/3 960H TVL Mini Camera w/ 5.8G 200mW Transmitter VTX for Drone 1S – 6S RC Car

 :Brand Name: Hawkeye Series Name: Firefly Item Name: Fortress Version: Ver 2.2Color: BlackSmall size and lightweight.2.1mm M8 960H TVL FPV lens.Support 1S.2S-6S battery.AIO available. with well protected shell.Support 6 Adjustable setting modes. Camera Specification:Image Sensor:1/3 inch CMOSHorizontal Resolution:960H TVLTV System:NTSC/PALImage: 4:3 / 16:9Min Illumination 0.1Lux(Color) / 0.001Lux(B&W)Lens: M8. 2.1mmS/N Ratio:> 60dBVideo Output :CVBSVoltage Output:5V – 300mAPower Input:5-36V (No transmitter added)6-36V (transmitter added)3.5-4.3V (Change to 1S Battery input)Working Voltage:1S . 2S-6S LiPoWorking Temperature:-20℃ ~ +60℃Net Weight:8gDimension:19x22x22mmLanguage: English / Chinese Transmitter Specification:Supply Power:3.3-5.5VInput Impedance:75ΩTx Power:0/25/50/200mWFrequency:5.8GHZChannel: 48/72CHAntenna connector:MMCXSize:18*20mmWeight:2gTransmitter Channel Button:Press Once: Channel switch from 1 to 8.Press 2 seconds: Channel group switch from A to F. or H.Press 10 seconds: Change power: 0mw.25mw.50mw.200mw. Band Resistor(0Ω): Soldered: 48 channels (Default)Removed: 72 channelsMode Setting:Press and hold Left key to switch: Cloudy.Indoor.Lightrax.Twilight.Personal.Sunny.You could adjust the settings in each mode. Power Setting & Low Power Alarm Setting:Press and hold Right key to adjust the power value; Press Left button to set the alarm power.You could adjust the power by pressing up/down button. Package Included（optional ）:1 x Fortress 2.1mm 4:3 16:9 Micro FPV Camera+Transmitter VTX AIO

Explore the world with Hawkeye’s Firefly Fortress Micro FPV Camera. featuring an all-in-one (AIO) design with a 960H TVL resolution. available in a compact 19mm x 22mm size.

Well-protected shell for 1S to 6S batteries. featuring 6 adjustable setting modes.

Note: This camera can only be powered by two points. not three. Default compatibility: 1S battery (can also power 2S-6S batteries).

Specifications:* Image sensor: 1/3 inch* Horizontal resolution: 960H TVL* TV system: NTSC/IPAL* Image format: 4:3 or 16:9* Minimum illumination: + Color: 0.01 lux + B&W: 0.01 lux* Lens: M8. 2.1mm. sin ratio: 60dB* Video output: CVBS* Voltage output: SV-30mA. 5-36V (without transmitter); with transmitter. 3.5-4.3V (compatible with 1S battery input)* Work temperature: -20°C to +60°CNote: The power input is 36V when the transmitter is added. and 3.5-4.3V when using a 1S battery.

FPV Setup Instructions:* Factory Save/Exit + Set display marks: ON/OFF + Position on screen: – POWER: ON – POS: P1 – SCALE MARK: On + RETURN

Camera Settings:* Exposure Value: Set the brightness level by adjusting the value (current setting: 10) + Metering Mode: – Average – Up – Down – Center* Image Color/Black & White: + Day/Night Mode: COLOR

Image Settings:* Color Gain: Adjust the color gain level to 6 + Image Quality: Mirror mode NONE* Gamma Correction: + Larger values will result in a more contrasted image. otherwise the image may appear brighter + Sharpening: + Auto White Balance (AWB): + Automatic Gain Control (AGC): * Return to Function Setup 16.9

Channel Settings:* Channel Group Switch: + Select from A to F (or H) and press the button for 10 seconds* Power Adjustment: + Choose from OmW. 25mW. SoMW. or 2OOmW
