Happymodel ExpressLRS 2.4GHz EP1 Dual True Diversity TCXO Receiver

Description

EP1 Dual True Diversity ELRS receiver is the hottest Tiny ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much more reliable.

With upgraded oscillator, these receivers should perform according to ExpressLRS specifications.

Specifications:

• Type: ISM2.4GHz
• ESP32 PICO D4, dual SX1280(SX1281)
• Antenna connector: IPEX MHF 1/U.FL
• RF Frequency: 2.4GHz (2400~2480MHz)
• Telemetry power: >19dbm
• Receiver protocol: CRSF
• Input voltage: +5V DC @ “+” pad
• PCB size: 19mm x 14mm
• Weight: 1gram exclude antenna
• Built-in a TCXO (temperature compensated crystal oscillator)
• Default Firmware out of factory: Unified_ESP32_2400_RX  Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW

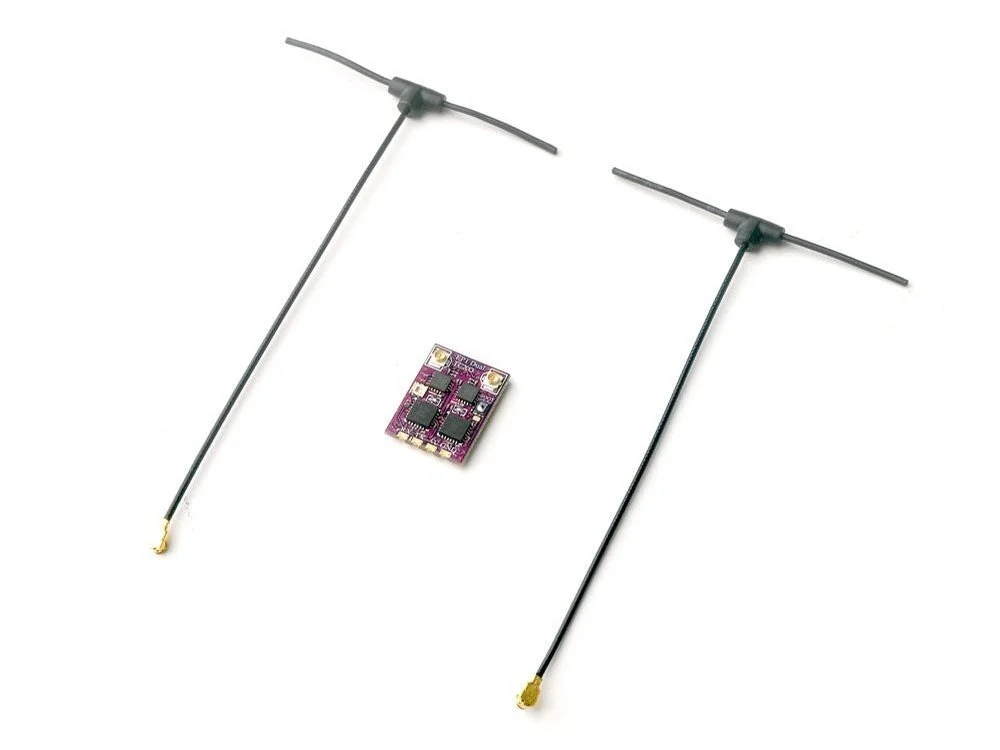

Includes:
1x Happymodel ExpressLRS 2.4GHz EP1 Dual True Diversity TCXO Receiver
2x Antenna
