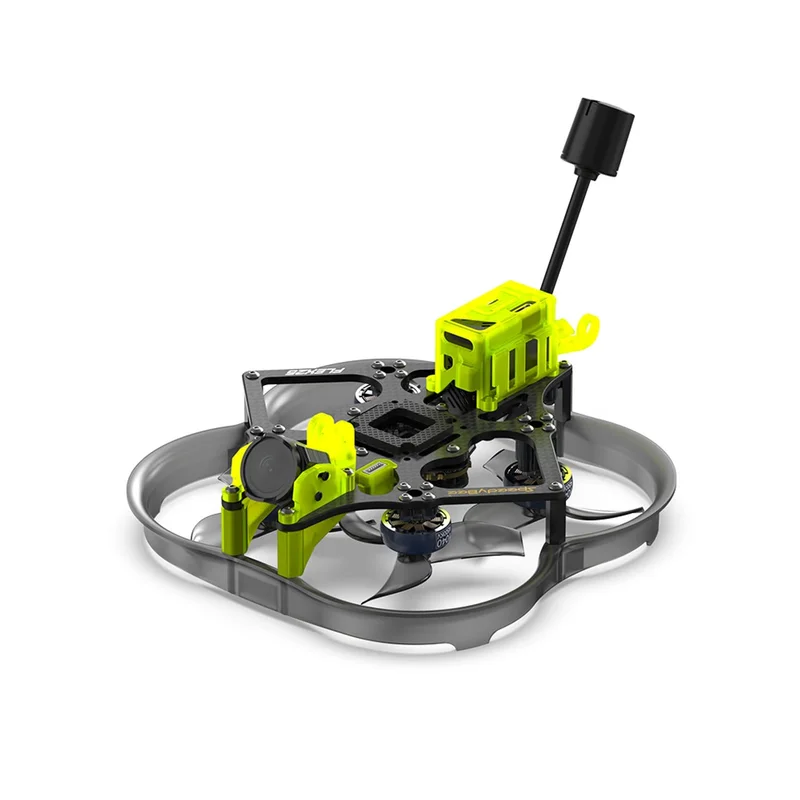

Happymodel Crux35 ELRS V2 Analog BNF – ELRS
Check out all of our other HappyModel products! Also, take a look at our selection of Pre-Built Drones!
CRUX35 is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
Features:
Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
Integrated ExpressLRS SPI receiver
High efficiency EX1404 power system
Can be equipped with Naked Gopro or SMO4K
Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
Specifications:
Brand: Happymodel
Model: Crux35 Analog
Wheelbase: 150mm
Weight: 87g
Size: 130mmx130mmx45mm(without propellers)
Receiver optional: UART ExpressLRS 2.4GHz (ELRS 2.4G RX)
Camera option: Ant+OVX303 VTX
Flying time: 9min~15min 4s 750mah battery
| Flight controller
(ELRS Version) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM42688P or BMI270 (SPI Control) Mount pattern: 25.5×25.5 M2 Size:32*32*5mm Power supply: 2-4S Lipo battery Built-in 20A Blheli_s ESC each Built-in Betaflight OSD(SPI Control) Built-in UART ExpressLRS 2.4GHz receiver Built-in 5V 1.5A BEC Flight controller firmware target: CRAZYBEEF4DX |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT300 |
