CrazyF405 AIO

Check Out Our Other Happymodel Products!

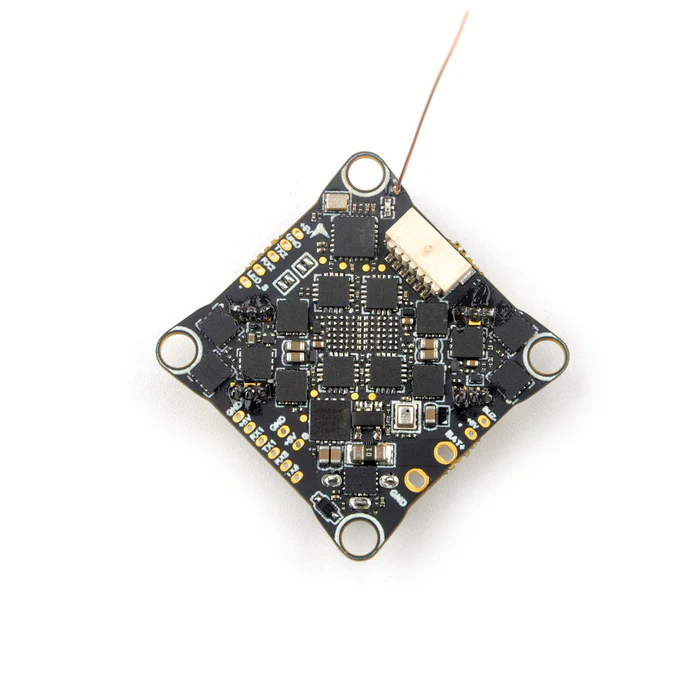

Build the ultimate Digital HD whoop with the Happymodel CrazyF405 HD AIO. Specially engineered for the modern era of high-definition micro drones, this All-In-One (AIO) board strips away the unnecessary analog OSD chip to optimize PCB layout and weight, making it the perfect brain for your 1S-2S Tinywhoop, Cinewhoop, or Toothpick build.

Optimized for Digital HD

The CrazyF405 HD is designed to pair seamlessly with digital video systems like HDZero, Walksnail Avatar, or DJI. By removing the bulky analog OSD chip (AT7456E), Happymodel has freed up space and reduced weight to just 4.8g, while ensuring you have 3 complete sets of UARTs available to connect your HD VTX and other peripherals.

Powerful F405 Processing

At its core lies the powerful STM32F405RGT6 MCU running at 168MHz. This provides significantly more computing power than standard F411 boards, allowing you to run faster loop times, advanced filtering, and even INAV firmware for autonomous capabilities. It features a built-in BMI270 Gyro (SPI) for locked-in flight performance.

Feature-Packed & Versatile

Despite its tiny 25.5×25.5mm footprint, this board is loaded with features:

• 12A 4-in-1 ESC: Supports 1-2S LiPo/LiHV with a 15A burst, pre-flashed with Bluejay firmware (Z-H-30) for bi-directional DSHOT support.

• Serial ELRS Receiver: Features an onboard UART-based ExpressLRS 2.4G receiver (not SPI!). This means easier firmware updates via Wi-Fi/Betaflight pass-through and better range/stability.

• Data & Sensors: Includes an 8MB Blackbox for tuning logs and a BMP280 Barometer for precise altitude hold.

Key Features:

• HD Ready: Analog OSD removed for optimized Digital VTX integration.

• High Performance: F405 MCU + BMI270 Gyro + 8MB Blackbox.

• Serial ELRS: Built-in UART ExpressLRS 2.4G (Easy updates).

• Powerful ESC: 12A Continuous / 15A Peak (Bluejay Ready).

• Versatile Power: Supports 1S to 2S LiPo/LiHV input.

• Connectivity: 3x Full UARTs for VTX, GPS, or Receiver flexibility.

Specifications:

• Model: CrazyF405HD ELRS 1-2S AIO

• MCU: STM32F405RGT6 (168MHz)

• Gyro: BMI270 (SPI)

• Mounting: 25.5mm x 25.5mm

• Weight: 4.8g (excluding wire)

• ESC: 12A 4-in-1 (Bluejay Z-H-30 Target)

• Receiver: Onboard Serial ELRS 2.4G (UART)

• Barometer: BMP280

• Blackbox: 8MB

• Input Voltage: 1S – 2S (DC 2.9V – 8.7V)

• Firmware Target: BetaflightF4

What’s in the Box?

• 1x Happymodel CrazyF405 HD AIO Flight Controller

• 1x XT30 Power Lead (Pigtail)

• 1x Mounting Hardware / Dampers
