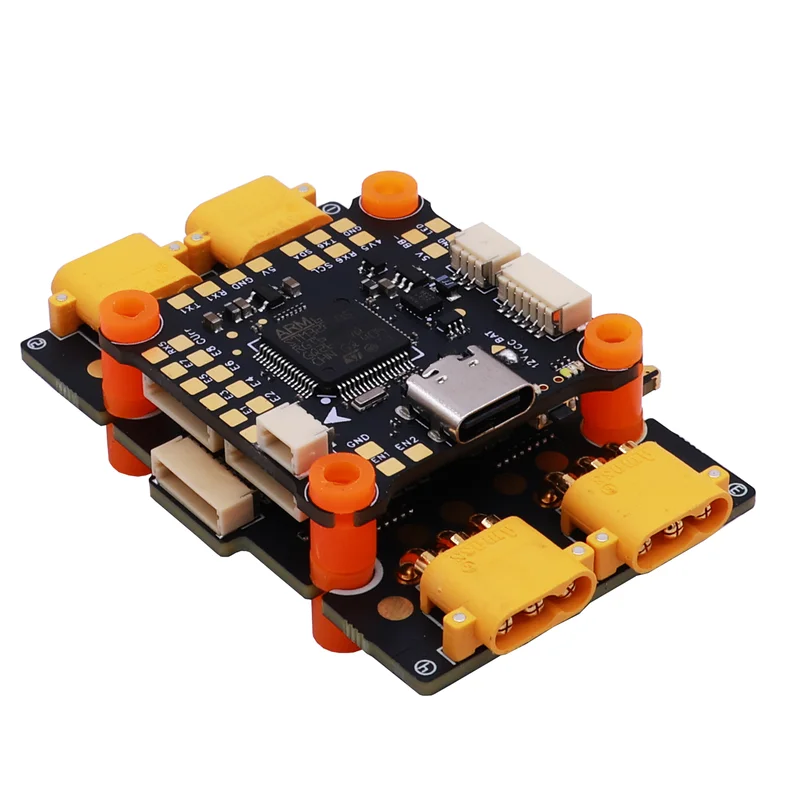

HAKRC EF60 65A Stack for FPV Drone – 30.5×30.5mm F405 Flight Controller + 3oz Copper PCB 8-Bit 4-in-1 ESC (2–8S)

Description

1. The PCB is made of high-end 6-layer 3oZ thickened copper skin. which has stronger overcurrent capacity and good heat dissipation.

2. The MOS adopts 40V high current resistant mos. which has a long life and strong load capacity.

3. Adopt industrial-grade LDO. high temperature resistance.

4. Using high-quality Japan Murata capacitors. strong filtering performance.

HAKRC 4551 Flight Controller：

Flight controller size: 36*36mm (30.5mm-30.5mm installation hole distance)

Packaging size: 64*64*35mm

Input voltage: 2S-8S Lipo

Net weight: 8.5g

Packaging weight: 45g

CPU: STM32F405RGT6

IMU: ICM42688

OSD: AT7456E

Barometer: Integrated

Black box: 16M

BEC: 5V/4A

BEC: 12V/3A

Serial ports: 6

Firmware version: HAKRC F405V2

Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver

HAKRC EF60 65A ESC：

EDS size: 64mm*46mm

EDS net weight: 27.5g

Continuous current: 65A

Maximum current: 70A

Input voltage: 2-8S

Parameter adjustment software: E_X_40 – Rev. 16.7

Drive signal support: PWM. Oneshot125.Oneshot42. Multishot. Dshot150.Dshot300. Dshot600
