Description

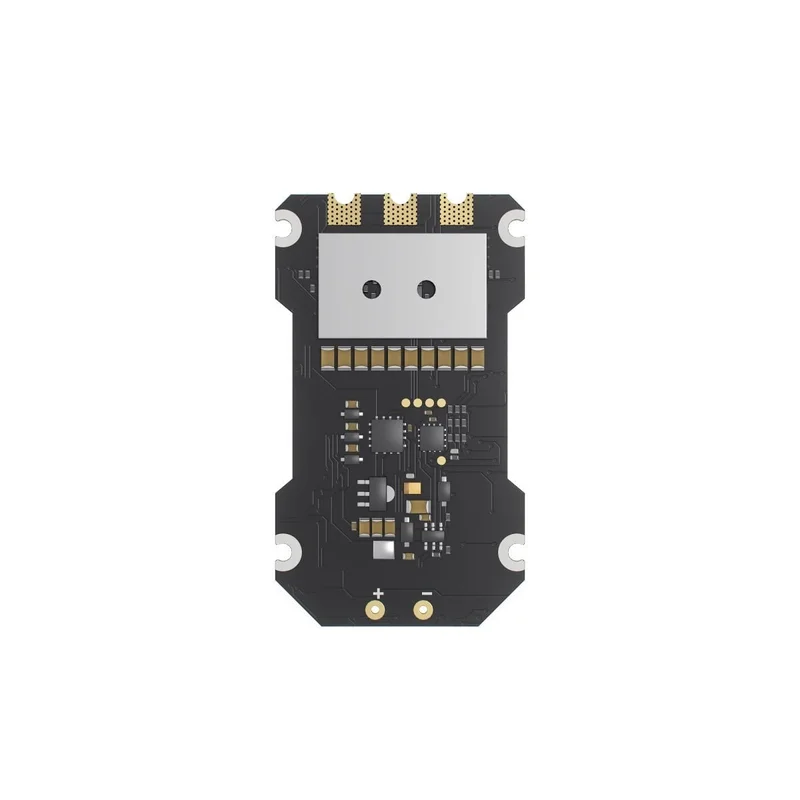

TAKER S80 8S BLS 80A ESC

Please Check Out Our Other GEPRC Products!

Take your heavy-lift cinematic rig or extreme long-range cruiser to the next level! The GEPRC TAKER S80 Single ESC is a rugged, high-performance electronic speed controller designed specifically for large-scale FPV drones. Capable of pushing a massive 80A of continuous current and supporting wide-range 3S to 8S LiPo voltages, this ESC provides the rock-solid reliability and raw thrust required to swing large props and carry heavy payloads.

Advanced Thermal Management

High power demands exceptional cooling. The TAKER S80 is built with a custom-molded, heat-dissipating shell featuring a hollow design for maximum airflow. Inside, a self-contained MOS heat sink rapidly draws heat away from the high-quality MOSFETs. This incredibly efficient cooling architecture ensures your ESC maintains stable, throttle-responsive performance without thermal throttling, even during sustained high-current punch-outs.

BLHeli_S & BlueJay Compatible

Tune your rig exactly how you want it! The TAKER S80 gives you complete firmware freedom. Whether you prefer the bulletproof reliability of BLHeli_S or want to flash BlueJay for advanced bi-directional DShot capabilities, you can switch freely between the two. It fully supports standard DShot 150, 300, and 600 protocols for ultra-smooth motor communication.

Key Features:

• Heavy-Duty Output: 80A continuous current rating (85A burst) for driving massive stators.

• 8S Capable: Wide input voltage supports everything from standard 3S up to extreme 8S LiPo power systems.

• Armored Cooling: Custom-molded hollow case and internal MOS heat sink for rapid thermal dissipation.

• Firmware Freedom: Fully compatible with both BLHeli_S and BlueJay open-source firmware.

• Premium Wiring Included: Comes with thick 10AWG silicone wire and a massive 50V 2200μF capacitor to handle voltage spikes.

Specifications:

What’s in the Box?

• 1x TAKER S80 8S BLS 80A ESC

• 1x 50V 2200μF Capacitor

• 1x 10AWG Red Power Cable (240mm)

• 1x 10AWG Black Power Cable (240mm)

• 1x 2.54mm Dupont Line (2-Pin Single-end Socket / 150mm)
