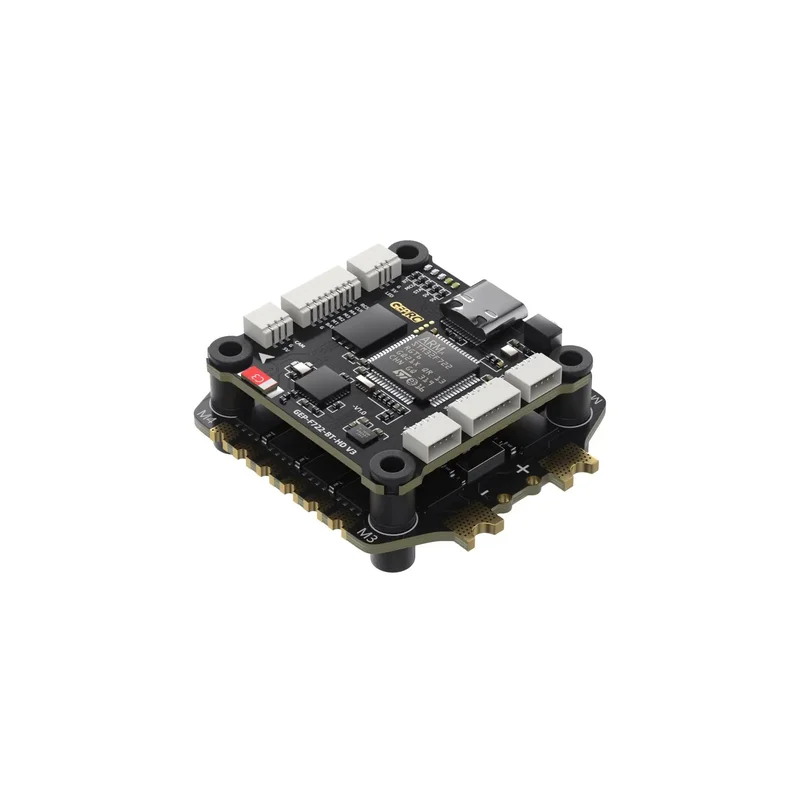

GEPRC TAKER F722 BT 8Bit 60A Stack

Description

GEPRC TAKER F722 BT 8Bit 60A STACK

The GEPRC TAKER F722 BT 8Bit 60A Stack is a high-performance flight stack engineered for serious FPV pilots who demand power, reliability, and clean integration with DJI digital systems. Featuring the STM32F722 processor and the advanced ICM42688-P gyroscope, this flight controller offers fast signal processing and stable flight performance, even in aggressive freestyle or racing conditions.

With built-in Bluetooth tuning support, the GEPRC TAKER F722 BT 8Bit 60A Stack allows you to wirelessly adjust parameters using mobile apps—no cables required. The integrated LC filter and dual BECs (5V@3A + [email protected]) provide clean power for all components, while the direct plug connection to the DJI Air Unit simplifies digital FPV builds.

Paired with the TAKER H60_BLS 60A 4IN1 ESC, this stack can handle continuous currents of 60A and burst up to 65A, supporting DShot protocols and telemetry. Soft-mounted with silicone anti-vibration pads, this stack ensures your gyro readings remain stable for more accurate flight.

Key Features:

• STM32F722 processor with ICM42688-P gyro

• 512MB onboard black box for flight logging

• Bluetooth-enabled wireless tuning

• Integrated LC filter and barometer

• Type-C USB port for easy access

• DJI Air Unit plug-and-play ready

• TAKER 60A 4IN1 ESC for smooth, powerful output

• Dual BEC: 5V@3A + [email protected]

• Shock-absorbing silicone mounts for gyro stability

Flight Controller Specs:

• Model: GEP-F722-BT-HD V3

• Voltage: 3–6S LiPo | Weight: 8.2g

• Firmware: GEPRCF722_BT_HD_V3

• Black Box: 512MB onboard

• USB: Type-C | UARTs: 5 total

• Mounting: 30.5×30.5mm (φ4/φ3 with adapter)

ESC Specs:

• Model: TAKER H60_BLS 60A 4IN1 ESC

• Voltage: 3–6S LiPo | Continuous: 60A | Burst: 65A

• Size: 42×45.7mm | Mounting: 30.5×30.5mm

• Weight: 14.9g

• Protocols: DShot150/300/600

• Telemetry & Ammeter support

Included in the Box:

• 1× Flight Controller

• 1× ESC Board

• 1× 1000uF Capacitor

• 1× O3 3-in-1 DJI Cable

• 1× FC Adapter Cable

• 1× SH1.0 4-Pin Cable

• 1× Camera Cable

• 1× VTX Cable

• 1× XT90 Power Cable

• 4× M3×30 Screws

• 4× M3×25 Screws

• 8× Nylon Nuts

• 12× Silicone Anti-Vibration Pads

The GEPRC TAKER F722 BT 8Bit 60A Stack is your go-to solution for clean power delivery, DJI digital FPV integration, and high-amperage support in a pro-grade all-in-one stack.
