Description

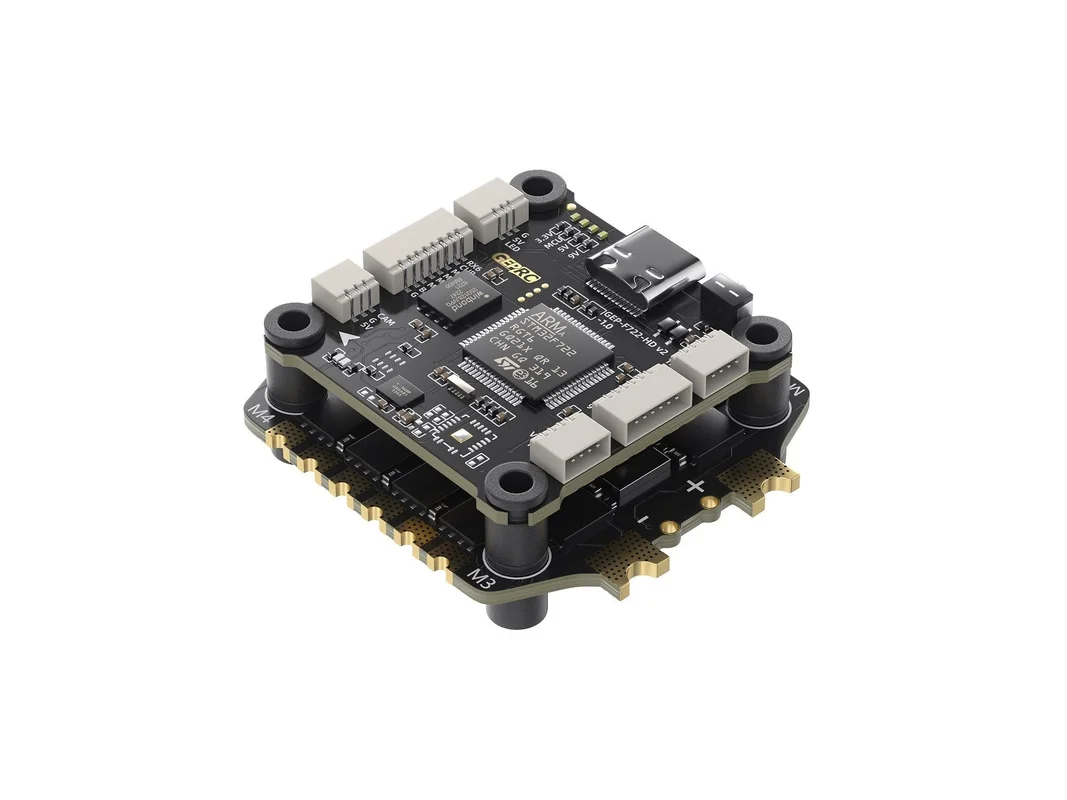

The GEPRC Taker F722 BLHeli_S 60A Stack V2 is a powerful, feature-rich stack with a powerful F722 MCU and a plug-and-play, easy-to-use design. The FC’s integrated LC filter and dual BEC provide reliable and stable power, while the USB-C port allows for fast and efficient configuration. With a reasonable price and a 60A BLHeli_S 4-In-1 ESC, this stack is perfect for all your drone building needs.
Features:
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications:
GEP-F722-HD V2 FLIGHT CONTROLLER
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugging into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,[email protected] dual BEC
- Firmware Target: GEPRCF722
- Size: 36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage: 3-6S LiPo
- UART: 5
- Power Filter: Integrated LC filter
- Weight: 8.1g
TAKER H60_BLS 60A 4-IN-1 ESC
- Input Voltage: 3-6S Lipo
- Ammeter: Support
- Continue Current：60A
- Burst Current：65A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Target: B_X_30
Includes:
1x GEPRC GEP-F722-HD V2 Flight Controller
1x GEPRC Taker H60_BLS 60A 4-In-1 ESC
1x Capacitor
1x DJI Air Unit Adapter Cable
1x Flight Controller Adapter Calbe
1x XT60 Power Cable
4x M3*30 Screws
4x M3*25 Screws
8x Nylon Nuts
8x SIlicone Grommets
2x sh1.0 4pin Silicone Cable
1x Camera Connection Cable
