Description

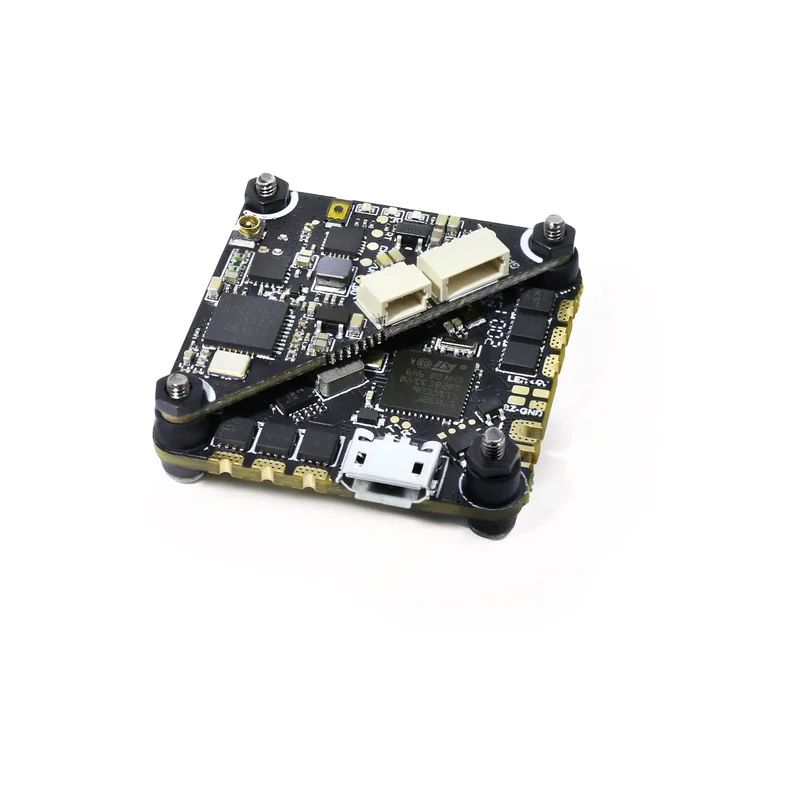

GEPRC STABLE 20A Toothpick Stack
Crazy, tiny, indoor through the machine, control, indoor through the machine into the 4S battery era.
After a long time of research, STABLE 12A Whoop Stack has come out, the maximum support 4S battery, perfect use of 1103-1105 motor, F4 flight control chip can complete the required operation, MPU6000 gyroscope to ensure the hand, with OSD adjustable parameters, very convenient, very light weight, is the indoor traverser of the choice.Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.
GEP-12A-F4 Flight controller:
Specifications:
- Model Name:GEP-12A-F4
- MCU: STM32F411
- IMU: MPU6000 gyro/accelerometer (SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:NO
- BEC Output: 5V@1A
- Integrated LC Filter
- Firmware target: GEPRCF411
- Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
- Installing Hole: 25.5×25.5mm, M2
- ESC MCU: BB21F16G
- Continuous current: 12A
- Input:2-4s lipo
- Supports Dshot600 ,Oneshot,Multishot
- Current meter: 210
- Target: G_H_30
VTX Specifications:
- Model Name:GEP-VTX200-Whoop
- Item name: 25~200mw 48CH VTX FPV Transmitter
- Output power: Pit/25/100/200mw switchable
- Channels: 48CH
- Input voltage: 4.5V – 5.3V
- Current consumption: 300mA(type)
- Antenna: RG178 antenna U.FL interface
- Frequency: 5.8GHz 5 bands 48 channels With Raceband
- Video Format:PAL/NTSC
- Control protocol：IRC Tramp
- Weight: 2g without antenna
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS
Includes：
– 1 x GEP-12A-F4
– 1 x GEP-VTX200-Whoop
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
