Description

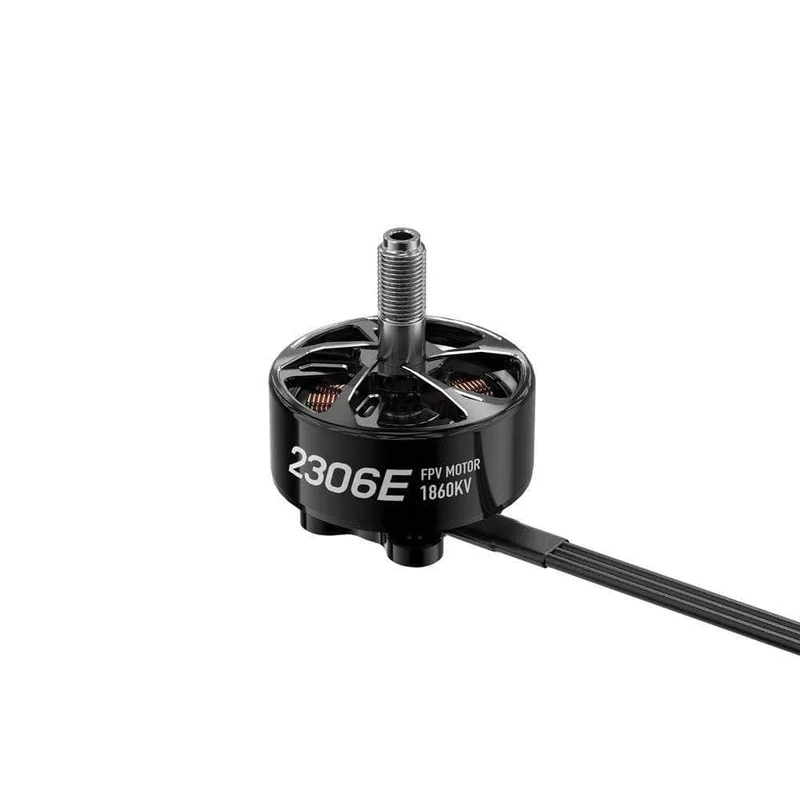

The GEPRC SPEEDX2 2306E Motor delivers fast response and reliable performance, making it ideal for freestyle pilots pushing their limits. Its reduced rotor-stator gap ensures precise control, while the unique blade-like protrusions securely lock your props in place. Featuring a glossy all-black finish and an open cutout structure for efficient cooling, this motor is both sleek and functional. Built from 7075 aerospace-grade aluminum and precision CNC machined, the SPEEDX2 2306E strikes the perfect balance of lightweight design and durability.
Check out all our motors and our GEPRC selection!
Features
- 7075 aerospace-grade aluminum construction for lightweight strength
- Sleek all-black glossy design with performance-enhancing cutouts
- Blade-like prop-locking design for secure propeller installation
- Precision CNC machining for high durability and tight tolerances
- Reduced rotor-stator gap for ultra-responsive throttle control
Specifiactions
- Model: SPEEDX2 2306E Motor
- KV: 1860
- Max Watt: 972.7W
- Peak Current: 39.18A
- Interphase Resistance: 83.17mΩ
- Propeller: 4-5inch
- Magnet: N52H
- Bearing: NMB/NSK
- Stator Configuration: 12N14P
- Dimension: 29 x 18.6mm
- Shaft Diameter: 5mm
- Shaft Length: 13.5mm
- Mounting Hole Size：16 x 16mm
- Wire Specification: 20AWG/150mm
- Compatible ESC: 40A/6S
- Input Voltage: 6S
- Winding: Single-strand copper winding
- Color: Black
- Weight: 33.3g (including wire)
- Compatible Models: Suitable for 4″-5″ racing FPV quads
Includes
- 1x GEPRC SPEEDX2 2306E Motor – 1860KV
