Description

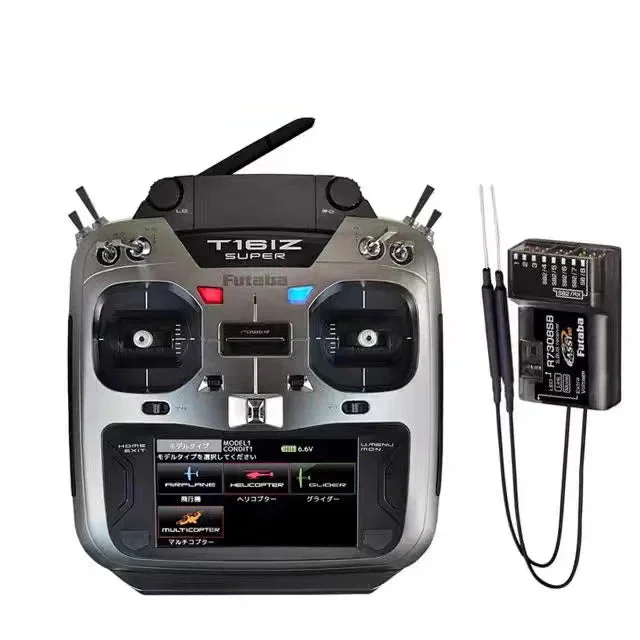

The Futaba T16IZ Super is a high-performance 18-channel 2.4GHz radio system designed for advanced RC pilots. Featuring FASSTest. S-FHSS. T-FHSS. and legacy FASST protocol compatibility. it offers exceptional flexibility. ultra-fast response. and robust signal reliability for airplanes. helicopters. multirotors. and more.
Upgraded with an elegant deep gray bezel and the latest R7308SB S.Bus2 receiver. the T16IZ Super now supports MAVLink telemetry via SBS-01ML. enabling real-time Pixhawk flight data monitoring—including GPS. altitude. current. and voltage—on the transmitter display.
Key Features
-
18-Channel System: 16 proportional + 2 switch channels for comprehensive model control
-
Full Protocol Support: FASSTest. FASST. T-FHSS. S-FHSS compatible
-
Telemetry Ready: Supports Futaba SBS-01ML for MAVLink telemetry with Pixhawk
-
High-Resolution 4.3″ LCD Touchscreen: Transflective display for indoor/outdoor visibility
-
Voice Alerts & Vibration Feedback: Stay informed with voice telemetry and customizable alerts
-
Model Memory: Stores up to 30 models with quick access
-
S.Bus2 Support: Simplified wiring with multiple telemetry sensor compatibility
-
Custom Throttle Mode Switching: Adjustable stick modes (Mode 1–4) without opening the back cover
-
USB-C Simulator Support: Connect to PC flight simulators with joystick emulation
-
MicroSD Slot: For data backup. model sharing. and firmware updates
-
2000mAh LiPo Battery Included: Long-lasting flight sessions with onboard USB-C charging
Included Receiver: R7308SB
-
Dual antenna diversity
-
8 PWM output channels + S.Bus + S.Bus2
-
Supports multiple telemetry sensors over S.Bus2
-
Compatible with Futaba’s latest systems including MAVLink integration
Package Contents
-
Futaba T16IZ Super Transmitter (Air or Heli version)
-
R7308SB Receiver (S.Bus2. 2.4GHz FASSTest/FASST)
-
2000mAh LT2F2000B LiPo Battery
-
USB-C charging cable
-
Neck Strap
-
Short printed manual (Full manual available online)
Specifications
| Parameter | Value |
|---|---|
| Operating Frequency | 2.4 GHz FASSTest / FASST / T-FHSS / S-FHSS |
| Channels | 18 (16 proportional + 2 switch) |
| Display | 4.3″ HVGA color LCD touchscreen |
| Power Supply | 7.4V LT2F2000B LiPo battery (included) |
| RF Output Power | 100 mW EIRP |
| Simulator Support | USB-C joystick (Windows compatible) |
| Receiver | R7308SB Dual Antenna S.Bus2 Receiver |
| Telemetry Support | Yes (MAVLink via SBS-01ML) |
The T16IZ Super is a top-tier solution for serious UAV pilots. drone professionals. and hobbyists seeking unmatched precision. telemetry support. and customization. Whether you’re flying a multirotor or programming a Pixhawk-based aircraft. this radio gives you full control and real-time feedback in one elegant. reliable system.
Details
Receiver channel operation mode overview. Modes A to J listed with corresponding channels 1-24. Channels 1-6 match modes directly; S.BUS2 for 7-8. S.BUS for 9-16. LED flash codes indicate settings: red for 1-5 times. green for 1-5 times. Factory default settings marked. This chart aids in configuring receiver channels for optimal performance with the Futaba T16IZ transmitter. Essential for users setting up their systems efficiently.
Futaba T16IZ Transmitter modes (MODE1-4) configuration. Adjust J2/J3 stick springs for hardness or freedom. Rear-side settings include ratchet options and mode switching from MODE2 to MODE1.
Futaba 2.4GHz transmitter-receiver compatibility chart. Lists various models like T10PX. T7PX(R). T4PV with corresponding receivers such as R404SBS-E. R334SBS-E. indicating “OK” for compatible pairs.
