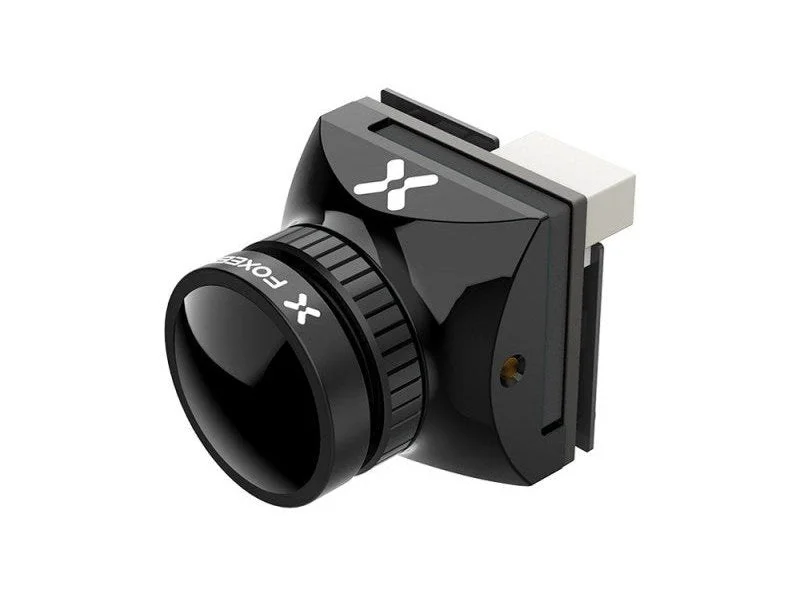

Foxeer T-Rex Micro 1500TVL Low Latency FPV Camera

Description

Another great option from the engineers at Foxeer.  The T-Rex 1500TVL Low Latency Super WDR FPV Camera probably produces the best image yet in an analog camera.  This camera features higher TV lines, special optimizations for LED lighting, super-low latency, 0.001Lux low light for flying in low light situations, and more.

Specifications:

• Sensor:  CMOS 2MP
• Scale:  4:3/16:9 Switchable
• TV System:  PAL/NTSC Switchable
• Resolution:  1500TVL
• FOV:
• 4:3 FOV-H: 120° FOV-D:150°
• 16:9 FOV-H:  155° FOV-D:175°
• Shutter Speed:  Auto
• Flip:  Up, Down, Left, Right
• Video Output:  CVBS Analog Signal
• Latency:  6ms
• Minimum Illumination:  0.001Lux
• White Balance:  Auto
• DNR:  3DNR
• WDR:  110dB
• Day/Night:  EXT/Auto/Color/B&W
• Flight OSD:  Voltage/Cam Title/Time
• Input Voltage:  4.5V~16V
• Power Consumption:  115mA±15%@DC12V,270mA±15%@DC5V
• Language:  English / 中文
• Working Temperature:-10°~50°C RH90% MAX
• Working Humidity:  20~80%
• Storage Temperature:  -20°~70°C
• Dimension:  19*19mm
• Weight:  8.6g(Exclude cable)

Download Manual
