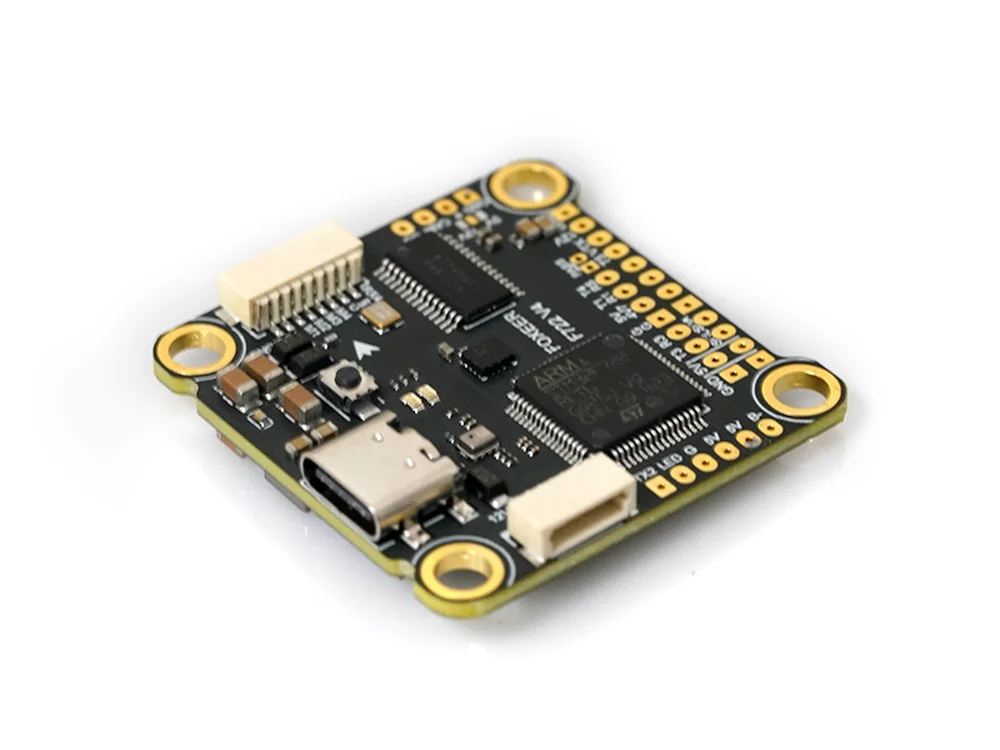

Foxeer F722 V4 FC ICM42688 Flight Controller

Description

The Foxeer F722 V4 Flight Controller integrates the high-performance STM32F722RET6 MCU with the advanced ICM-42688-P gyro, delivering precise and responsive flight control. Designed for demanding pilots, it supports up to 8 motors and 6 UART ports, accommodating complex setups with ease. Enhanced power and video filtering ensure stable signal quality and reduced interference, making it an excellent choice for builders seeking reliability and cutting-edge technology in their flight systems.

Specifications:

• Model:  F722 V4
• CPU:  STM32F722RET6
• Barometer:  DPS310
• Gyroscope:  ICM42688
• Power Supply:  4~6S Lipo (14V~28V)
• BEC Output:  DC5V/3A; DC12V/3A
• OSD:  BF OSD
• Black Box:  16M Flash Memory
• UARTs:  6 Sets
• ESC Telemetry:  RX4
• Buzzer:  YES
• Smart Audio:  YES
• LED:  1 Set 2812 LED
• USB:  Type-C
• X8 Supported:  Need CLI
• Firmware:  BF:  FOXEERF722V4
• Size:  37X37mm
• Mounting Hole:  30.5X30.5mm,Φ4mm
• Weight:  8g
• Working Temperature:  -20℃ ~ +55℃
• Working Humidity:  20～95%
• Storage Temperature:  -20℃ ~ +70℃

Includes:
1x Foxeer F722 V4 FC ICM42688 Flight Controller
4x Rubber Anti-Vibration Columns
