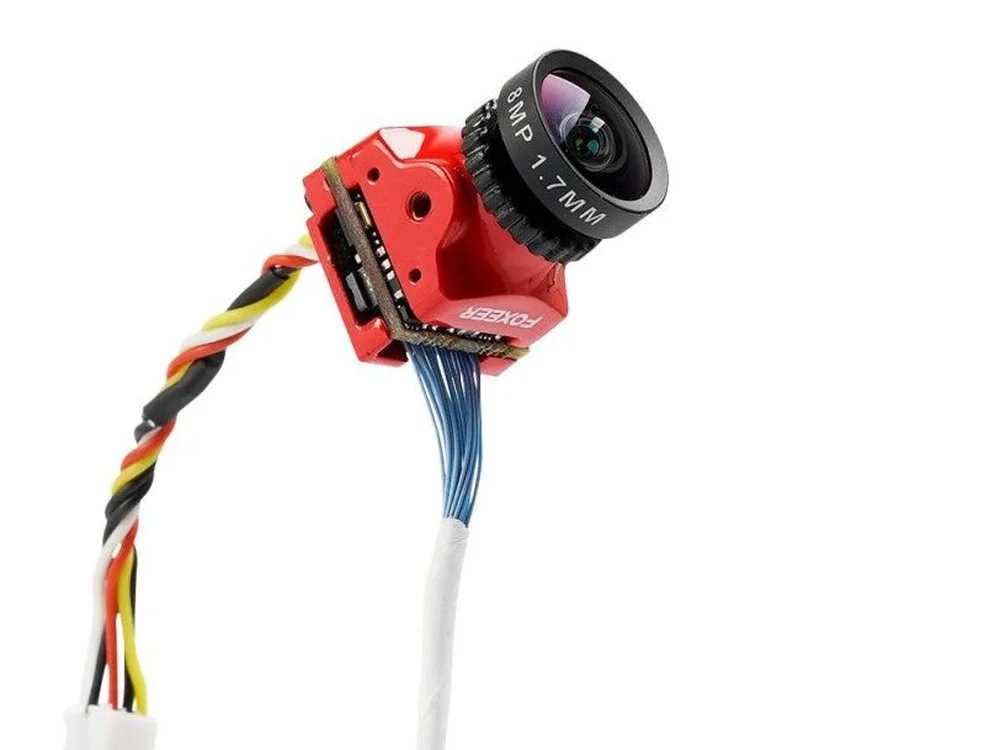

Foxeer Digisight V2 720P Digital Analog 4ms Latency FPV Camera

Description

Foxeer’s Digisight V2 FPV camera is a digital and analog camera in one.  Comes with two ways to connect – traditional solder pads for connecting to analog video transmitters and a digital connector for connecting to newer digital options like the Fatshark Shark Byte.

Specifications:

• Sensor Type: Sony 1/3″ CMOS Sensor
• Scale: 4:3(default)/16:9 Switchable
• Tv System: PAL(default)/NTSC Switchable
• Resolution: Digital 720P/Analog 1000TVL
• Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output: 720P Digital HD/CVBS Analog Signal
• FOV Digital: FOV-H:120° FOV-D: 145°
• FOV Analog: FOV-H:125° FOV-D: 155°
• Shutter Speed: Auto
• Minimum Illumination: 0.01Lux
• White Balance: Auto
• DNR: 3DNR 2DNR
• WDR: 120dB
• Mode: DAY/CLOUDY/Night/LED
• Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED
• Flight OSD: Cam Title / Voltage (Only in analog) / Time
• Input Power Digital: 3.3V from VTx
• Input Power Analog: 4.5~20V
• Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C
• Menu: Analog via camera programming board, Digital via VTx programming board
• Consumption Analog:  50mA±15% @ DC12V 115mA±15% @ DC5V
• Consumption Digital:  [email protected](Powered by VTX)
• Dimension: 14*14mm; 19*19mm(Add Bracket)
• Weight: 4.3g(Exclude cable)

Includes:
1x Foxeer Digisight V2 720P Digital Analog 4ms Latency FPV Camera
