Flyduino KISS ESC 2-6S 32A (45A Limit) – 32bit – MyFPV

Description

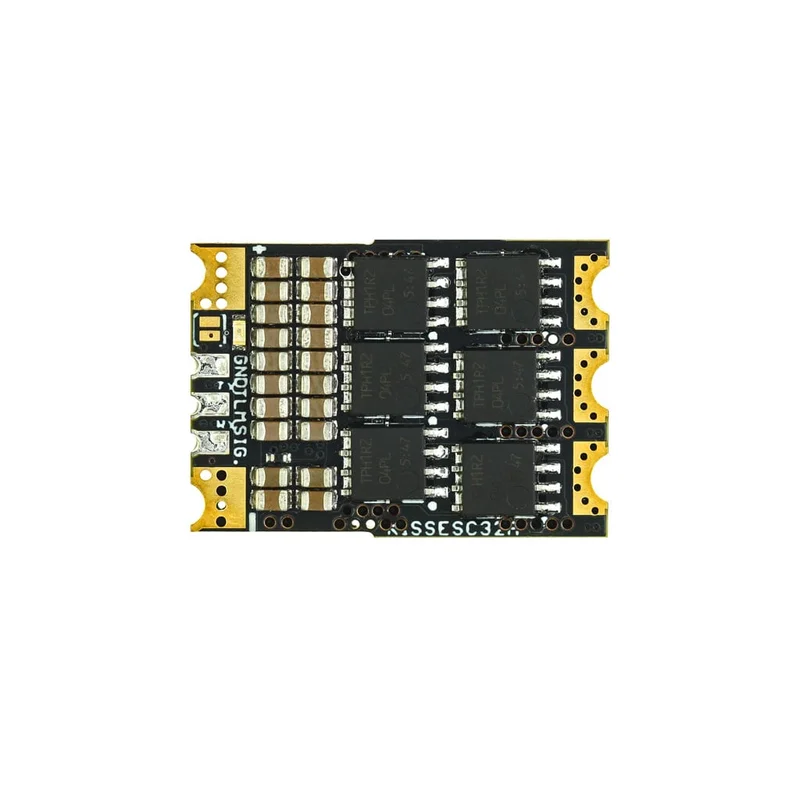

KISS ESC 2-6S 32A (45A limit) – 32bit

Experience the legendary KISS flight feel with the power and reliability of a dedicated, arm-mounted ESC. The Flyduino KISS 32A ESC, powered by a potent M4 MCU, is the premium choice for race copters and freestyle drones with power-hungry motor and propeller combinations. This 32-bit ESC is engineered to deliver the non-stop, smooth performance that the KISS ecosystem is famous for, especially on demanding 6S builds.

Advanced Technology for Smooth Power The KISS 32A ESC is packed with proprietary technology to deliver superior performance. It’s not just about raw power; it’s about control.

• SinHybrid Commutation: A unique Sinwave/BackEMF hybrid commutation method results in exceptionally smooth motor operation, reducing vibrations and improving efficiency.
• DShot 2400 Support: With a full resolution of 2000 steps, this high-speed protocol provides incredibly precise throttle control and a near-instant response feel.

Built for 6S Power Designed to handle the demands of modern FPV, this ESC supports 3-6S LiPo input and delivers a true 32A of continuous current, with an actively limited 40A burst capability. It features robust over-current and over-temperature protection to safeguard your electronics during the most intense flights.

Key Features:

• Legendary KISS Flight Feel: Proprietary 32-bit firmware provides an incredibly smooth, responsive, and intuitive flight experience.
• sinHybrid Commutation: A unique technology that results in smoother, more efficient motor performance.
• Full Telemetry Support: Transmits real-time voltage, current, temperature, and RPM data to your KISS flight controller.
• 32A Continuous Power: Provides reliable power (40A burst) for the most demanding 5-inch and larger motors on up to 6S.
• Advanced Protection: Features active over-current and over-temperature protection to safeguard your electronics.
• Individual ESC Form Factor: Perfect for builds that prioritize the durability and easy replacement of arm-mounted ESCs.

Important 6S Usage Note: While no additional capacitor is needed for 3-5S use, a capacitor of at least 220µF / 50V is required when using a 6S LiPo battery.

Specifications

• Operating Voltage: 9V−30V (3-6S LiPo)
• Maximum Continuous Current: 32A
• Instantaneous Maximum Current: 40A (actively limited)
• MCU: 32-Bit ARM Cortex M4 @ 80MHz
• Firmware: KISS 32-bit
• Size: 19×27mm
• Telemetry: Voltage, Current, Temperature, RPM

Includes

• 1x KISS 32A 3-6S Individual ESC
