Description

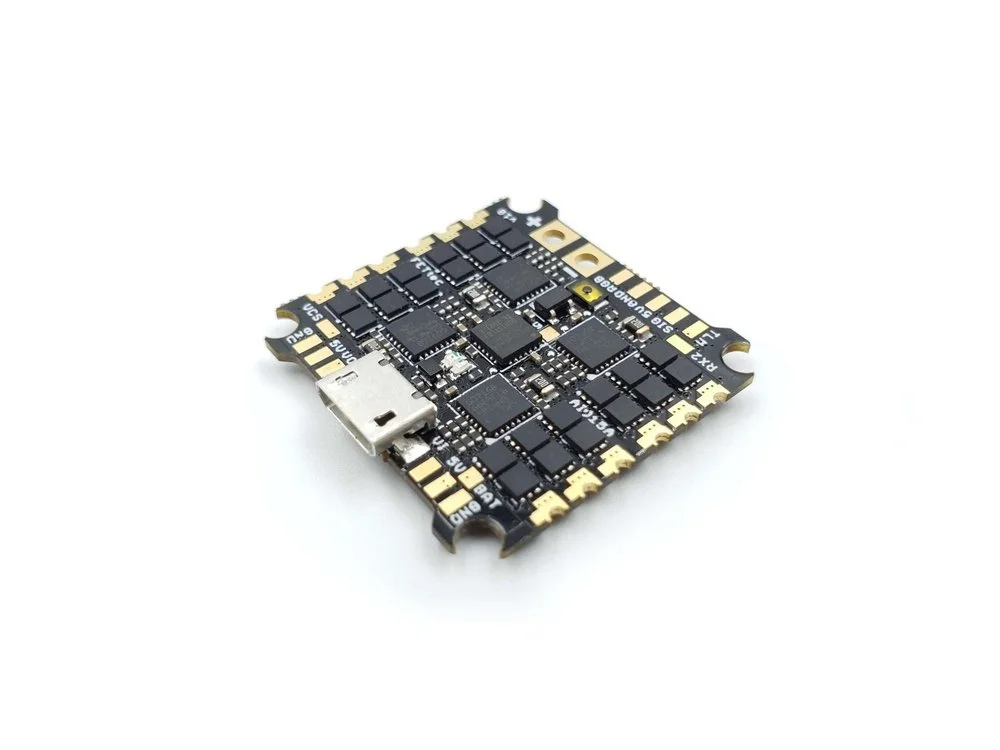

The FETtec Mini AIO is a KISS flight controller and 15A 4-In-1 ESC on a single tiny board. Measures just 29 x 29mm, this thing is perfect for small builds and whoops.
Features:
- Full FETtec AIO with KISS FC Firmware
- 4 ESCs 15A
- 2-4s
- Graphical OSD with full KISS tuning
Specifications:
FC:
- STM32F303CCT6 @ 72MHz
- MPU6000
- Supply voltage 6-18V (2-4s LiPo)
- 1x 5V BEC (max 1A)
- Dshot 600
ESC:
- Active current limiting @ 15A
- Input voltage: 2s-4s
- High-quality 30V MOSFETs
- STM32G071 @ 64MHz
- 128 kHz Motor PWM
- Automatic input signal detection
- Dshot
- PWM
- OneShot42/125
Dimensions:
- Size: 29 x 29 mm
- Mounting: 25,5 x 25,5 mm
- Weight: 3,41 g
Includes:
1x FETtec Mini KISS AIO 15A
Download Manual
Download FETtec Drift Car Manual
