Description

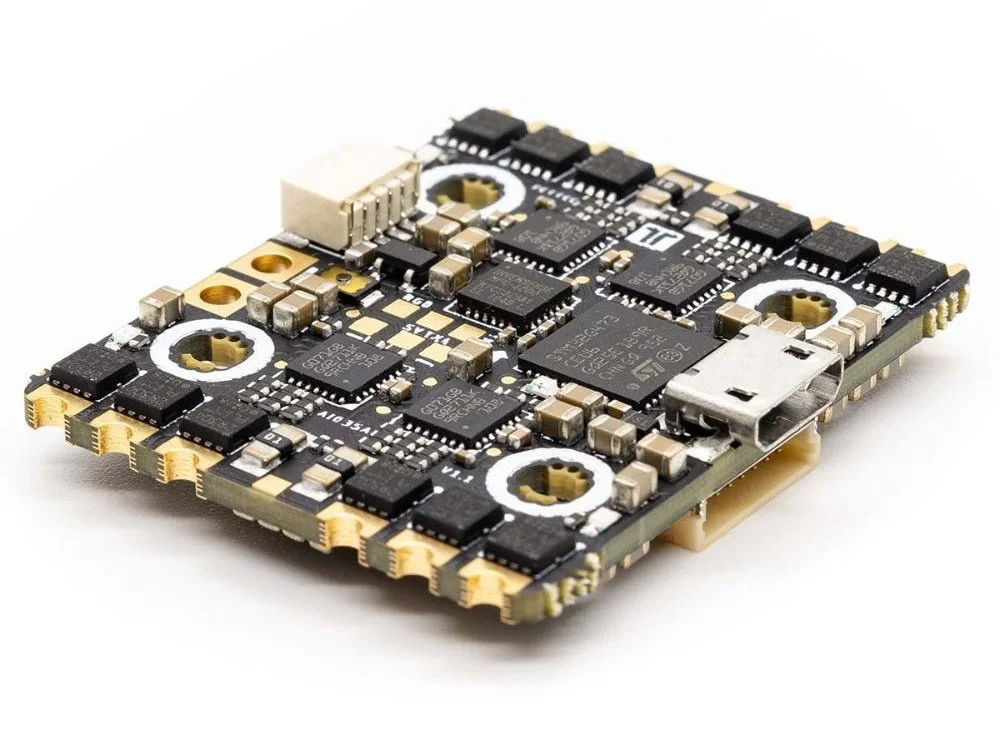

The next generation of FETtec’s popular KISS AIO flight controller has arrived! This board with 20×20 mm mounting holes features the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, onboard OSD for KISS flight tuning, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs, and ESC with full sine wave control.
A truly versatile product with KISS performance, small size to fit in tight places, and all the features you’d expect from bigger boards.
Specifications:
FLIGHT CONTROLLER
- Latest STM32G4 Processor
- 170Mhz + Math accelerator
- MPU6000
- Supply voltage 12-25V (3S-6S Lipo voltage)
- 2x dedicated onboard 5V BEC for VTX (max. 600mA each)
- 5V BEC for RX
- 5V/16V BEC for VTX (switchable and real Pit*)
- 1x 8 pin connector for solder-free VTX, cam connection and OSD or digital systems
- VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
- 2x 4 pin connector for receiver and VTX
- Signal, telemetry, 5V, gnd
- Gnd, 5V, TX1, RX1
- 5 UART serials
- UART 1 free
- UART 2 used for Receiver
- UART 3 free
- UART 4 used for onboard OSD, can be set free
- UART 5 used for ESCs / TLM / Onewire
- Solder pad for RGB LEDs
- Supported ESC protocols
- PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
- KISS FC firmware
* Real Pit-Mode: A power supply pin which is remotely switchable
4-In-1 ESC
- Active current limiting @ 35A
- Input voltage: 3s-6s
- High-quality 40V MOSFETs
- STM32G071 @ 64MHz
- Up to 128 kHz Motor PWM
- Full sine wave control
- Automatic input signal detection
- PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
- FETtec ESC firmware
OSD
- Onboard OSD
- Graphic OSD (STM32)
- Full KISS Tuning
- Filter (PIDs, Rates, Settings)
- LED control (RGB LED, Racewire)
- VTX
- Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)
- KISS GPS support + live map
- Custom graphic pilot logo
- Stick overlay
- Custom layout
- can be deactivated for usage of digital systems
- Connector type: JST-SH-1mm
DIMENSIONS
- Maximum outside dimensions: 30 x 37.5mm
- Mounting hole arrangement: 20 x 20mm with M2 mounting hole (expandable to M3)
- Overall Height: 7.9mm
- Weight: 8.9g
Includes:
1x FETtec KISS AIO Flight Controller and 35A 4-In-1 ESC
1x Capacitor 50V 470µF
2x 4 pin cable with JST connector
1x 8 pin cable with JST connector
Standoffs
