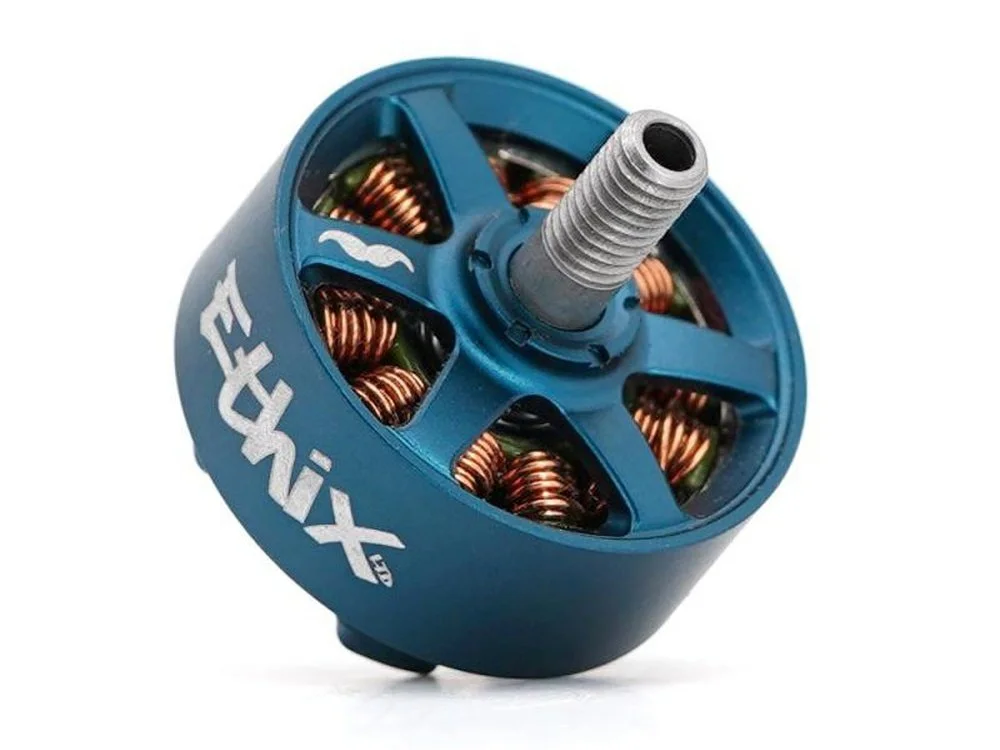

Ethix Mr Steele Stout V5 Blue 2307 1950KV Motors

Description

Introducing the Mr. Steele V5 Stout 2307 (1950KV) 6S (5”-5.5” prop) FPV freestyle motor.

The V5 features an increased stator size and a redesigned motor bell setup for more durability. This new iteration of my trusted power train formula follows a lightweight ethos with increased power and torque where it counts. Attaining a high power-to-weight ratio cannot overstate when building a high-performance aircraft. The V5 Stout adds confidence with even heavier HD cameras.

Thank you for your support and take pride in knowing that you are the reason I am able to keep evolving in this amazing space we call the FPV community.

Features:

• Increased stator size 2307
• Base redesign 16×16(only) mounting holes (new structural changes for more durability)
• Complete bell redesigned (durability and smoothness in mind)
• Thick single-strand copper winding
• Increased EFFICIENCY & POWER
• Complete Interchangeable motor pants redesign (thicker & more crash/low temperature resistant, better gap fitment, + more protection coverage for the “tall pants”)
• Better assembly tolerances
• Overall QC improvements
• 9mm steel bearings
• Eco-Friendly packaging
• Motor weight 33.8g (full-length cables) compared to Stout V1 at 31.5g
• Pants Weight – Low – 1g vs (0.8 v3) | Tall – 2g vs (1.8 v3)

 All in all this motor is an absolute gem, only a tad over 1g heavier than the previous model while achieving more power, efficiency, and most importantly durability.

Enjoy & Thank you for your continued support.

– Mr. Steele

Specifications:

• Stator Size (diameter):  23mm*7mm
• KV:  1950KV
• Magnets:  52SH Curved
• Windings:  13 turn DLRK
• Shaft Length (mm):  10.5mm
• Shaft Diameter (mm):  4mm
• Shaft Material:  Steel
• Bearing:  NMB684
• Weight (With Wires):  36.5g
• Cells (LiPo):  6S
• Max Current:  45A
• Max Burst Current:  60A
• Internal Resistance (Rm):  60mΩ
• Wire Spec (AWG):  20#-135mm
• Base Mounting Pattern:  16x16mm
• Base Mounting Thread:  M3 Thread
• Motor Overall Dimensions:φ28.6mm*18.2mm

Includes:
1x Ethix Mr Steele Stout V5 Blue 2307 1950KV Motors
