Description
Since the Mr Steele V3 was released it was one of the most popular freestyle motors in the world. We decided to offer the same tried and true formula at a fraction of the price. Now featuring thicker single strand copper winding for increased efficiency and resilience to high amp loads. We also changed the top and bottom of the motor with an all new raw tumbled aluminum finish.
The V3 Legacy motors offer maximum performance and compatibility without breaking the bank. V3 legacy motors share completely reverse compatibility with Mr Steele V3 motors. Now with sustainable packaging, the V3 legacy can live on with less impact on the planet.
Specifications:
- Stator Size (Diameter): 23mm*6mm
- Kv: 1750kv
- Magnets N52SH: Curved
- Windings: 15turn DLRK
- Shaft Length (mm): 11.5mm
- Shaft Diameter (mm): 4mm
- Shaft material: Steel
- Bearing: NMB684
- Weight (With Wires) (g): 30.4g
- Cells (Lipo): 6S
- Max Current (A): 45A
- Max Burst Current (A): 50A
- Internal Resistance (Rm): 98mΩ
- Wire Spec (AWG): 20#-135mm
- Base Mounting Pattern: 19x19mm
- Base Mounting Thread: M3 Thread
- Motor Overall Dimensions: φ27.5mm*17.2mm
Includes:

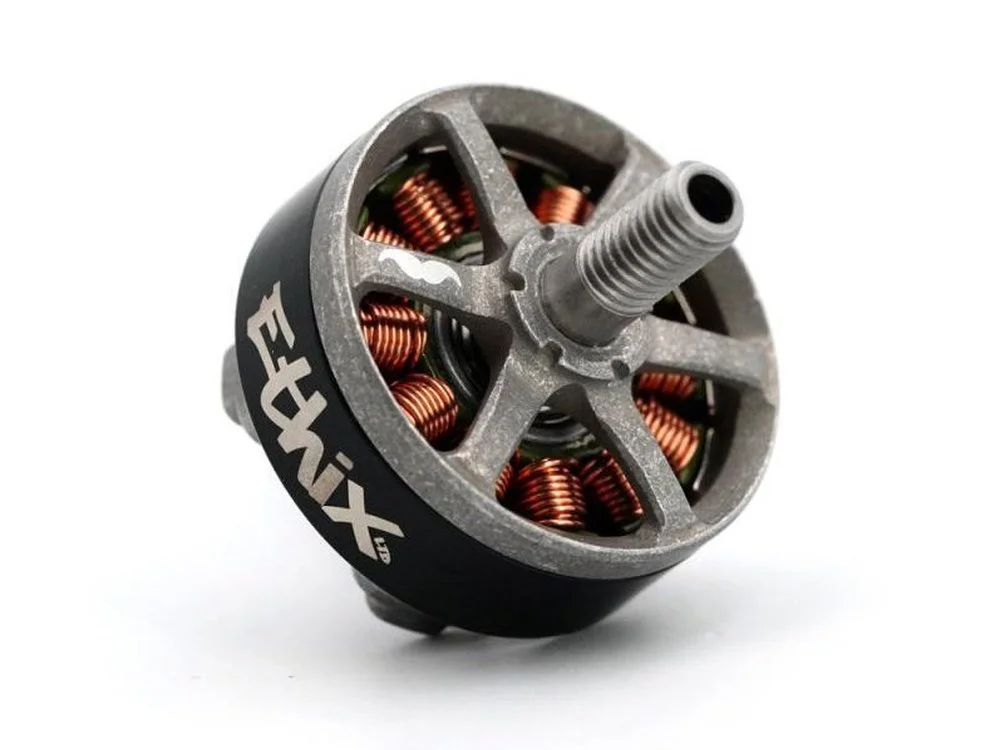

1x Ethix Mr Steele Stout Motor V3 Legacy Edition
