EMAX RS2306 2306 2550KV Brushless Motor for 5 Inch FPV Racer Quadcopter

Description

The EMAX RS2306 is a high-performance brushless motor specifically designed for FPV racer quadcopters. This motor offers two KV options: 2400KV and 2750KV. catering to different flight requirements. Its compact design and exceptional performance make it an ideal choice for FPV racing.

• Framework: 12N14P
• Diameter: 28.3 mm
• Length: 30.1 mm
• Max Thrust:
  • 2400KV version: 1552g
  • 2750KV version: 1762g
• Weight: 33.84g
• Battery Configuration: Supports 3S to 4S batteries
• Propeller Size: 5 inches
• Prop Adapter Shaft Thread: M5

This motor comes in a White Limited Edition for the first batch. After the initial batch of white motors is sold out. the standard black version will be offered. If there is sufficient demand. additional lower KV versions will be produced for 6S+ applications.

EMAX RS2306 brushless motor for 5-inch FPV racers. Available in 2400KV and 2750KV options. with max thrusts of 1552g and 1762g respectively. White limited edition initially offered.

EMAX RS2306 Special Edition multirotor motor packaging.

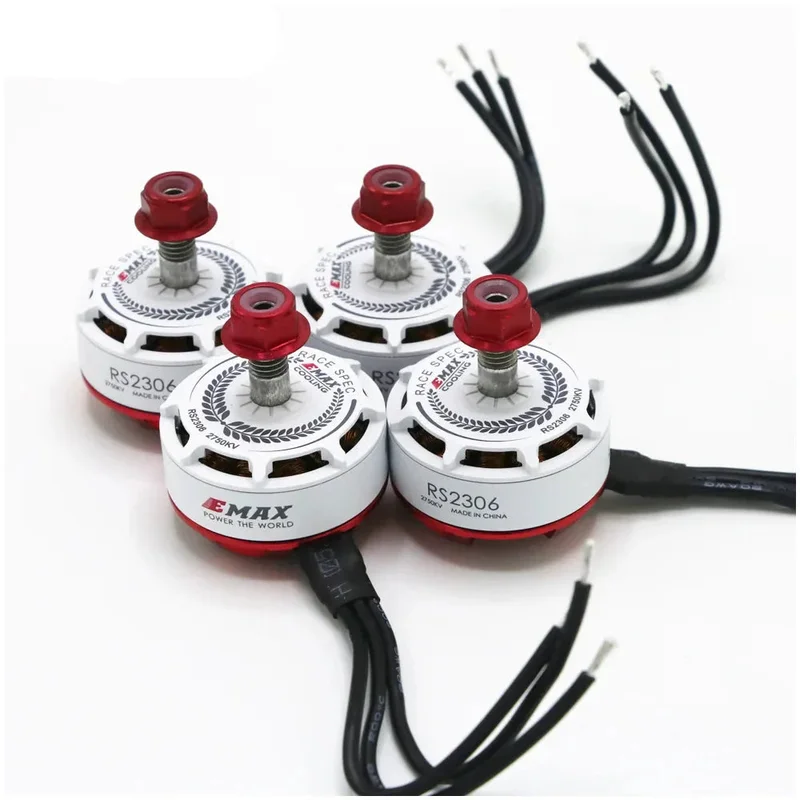

EMAX RS2306 2750KV brushless motor for 5-inch FPV racer quadcopter. made in China. Four identical units displayed.

EMAX RS2306 2306 2750KV brushless motor for 5-inch FPV racer quadcopter. featuring red caps and black wires. Made in China.
