Description

SPECIFICATIONS

Brand Name: dys

Certification: CE

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Motors

Hign-concerned Chemical: None

Is Electric: No battery

Material: Metal

Model Number:F2207.5 2207.5 1750KV 1950KV 2550KV

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: MOTOR

Size:F2207.5 2207.5 1750KV 1950KV 2550KV

Technical parameters: KV1100

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Universal Joint

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

NEW F2207.5 2207.5 1750KV 1950KV 2550KV 4-6S Lipo Brushless Motor Colorful Green For FPV 5inch Aircraft Drones Motors Parts

Test item:F2207.5(1750KV)
No.of cells: 6S
Weight:34g W/0 Silicone Wire
Stator Dimension (mm):22mm

Stator Height (mm):7.5mm
Max.Power (6S):704W
Lead:20#.200mm Length
Motor Dimensions:27.1mm*18.1mm
Idle Current (10V):1.1A
Propeller:GF6030
Framework:12N 14P
Max Current(A):29A
Internal Resistance:0.12mΩ

Test item:F2207.5(1950KV)
No.of cells: 6S
Weight:34g W/0 Silicone Wire
Stator Dimension (mm):22mm

Stator Height (mm):7.5mm
Max.Power (6S):799W
Lead:20#.200mm Length
Motor Dimensions:27.1mm*18.1mm
Idle Current (10V):1.2A
Propeller:GF5040
Framework:12N 14P
Max Current(A):33A
Internal Resistance:0.10mΩ

Test item:F2207.5(2550KV)
No.of cells: 4S
Weight:34g W/0 Silicone Wire
Stator Dimension (mm):22mm

Stator Height (mm):7.5mm
Max.Power (6S):496W
Lead:20#.200mm Length
Motor Dimensions:27.1mm*18.1mm
Idle Current (10V):1.6A
Propeller:GF5040
Framework:12N 14P
Max Current(A):33A
Internal Resistance:0.10mΩ

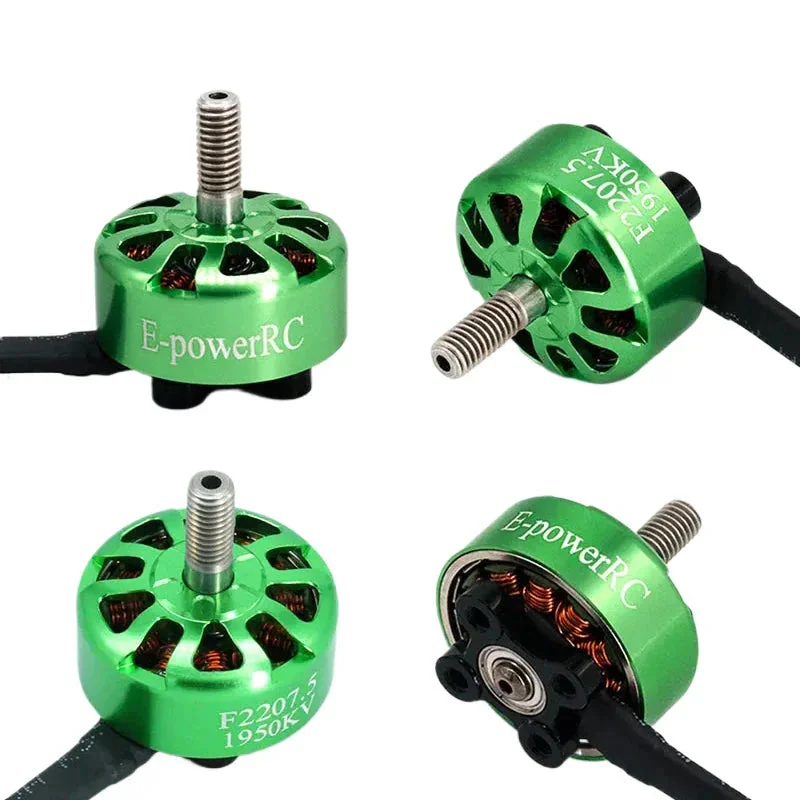

E-Powerrc F2207.5 brushless motor. FPV multi-rotor part. 1750KV. 1950KV. 2550KV options.

Seiko products feature high torque. low noise. and high precision.

E-PowerRC F2207.5 Motor includes anti-loosening nut with locking screws for enhanced flight stability. Matching nut provided.

E-PowerRC F2207.5 Motor: High-quality copper wire. advanced winding. high conductivity.

E-PowerRC F2207.5 motor: high-quality copper wire. low noise. high torque. stable performance.

E-Powerrc F2207.5 Motor: 1750KV/1950KV/2550KV. 27.1mm*18.1mm. 34g. 6S. 12N 14P configuration. High-quality FPV multi-rotor RC part.

E-Powerrc F2207.5 Motor specs: 22mm stator. 7.5mm height. 34g weight. Available in 1750KV. 1950KV. 2550KV. Max power 704W-496W. max current 29A-33A. Configured as 12N 14P with N52H magnets. Load test data included for various props and throttle settings.

Anti-loosening nuts. brushless low noise design. high-quality copper wire. laser engraving for customization. Ensures stable flight and long-term performance. Ideal for durable. quiet operations with brand enhancement.

Contact customer service for product. price. logistics. and customization inquiries. Factory direct sales ensure quality and low prices. Large orders offer favorable terms.
