Description

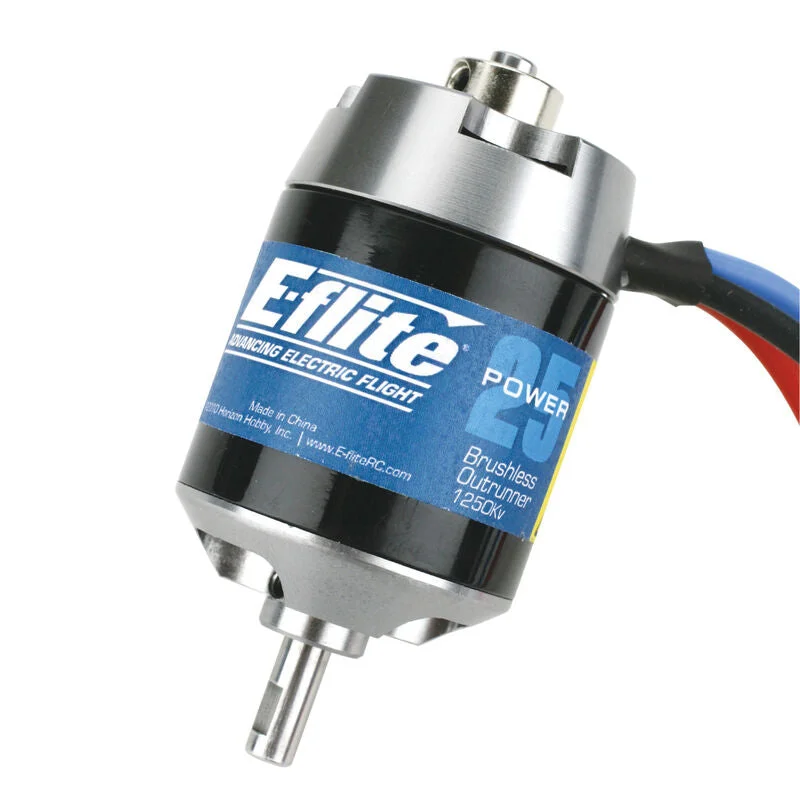

This is the 1250Kv Power 25 BL motor created for for high-power airplanes weighing 3- to 5.5-pounds or 15-sized high-speed electric Formula One racers weighing up to 4 pounds.
Features:
- Ideal for airplanes requiring up to 850 watts of input power
- Equivalent to a 25-size glow engine for high-power airplanes weighing 3- to 5.5-pounds (1.4- to 2.5-kilograms) or 15-sized high-speed electric Formula One racers weighing up to 4 pounds (1.8 kilograms)
- Includes mount, prop adapter and mounting hardware
- External rotor design; the shaft can easily be reversed for alternative motor installations
- High-torque, direct-drive alternative to inrunner brushless motors
- Quiet, lightweight operation
- High-quality construction with ball bearings and hardened 5mm steel shaft
Specifications:
- Type: Brushless Outrunner
- Size: 25
- Bearings or Bushings: One 5 x 14 x 5mm Bearing, and Two 5 x 11 x 4mm Bearings
- Voltage: 11.1 – 16.8
- RPM/Volt (Kv): 1250
- Resistance (Ri): .02 ohm
- Idle Current (Io): 2.00A
- Continuous Current: 50A
- Maximum Burst Current: 58A (15 sec)
- Cells: 3S – 4S Li-Po, 10 – 14 Ni-MH/Ni-Cd
- Speed Control: 60A Pro Brushless
- Weight: 183g (6.40 oz)
- Overall Diameter: 35mm (1.40 in)
- Shaft Diameter: 5mm (.20 in)
- Overall Length: Case: 54mm (2.10 in)
