Description

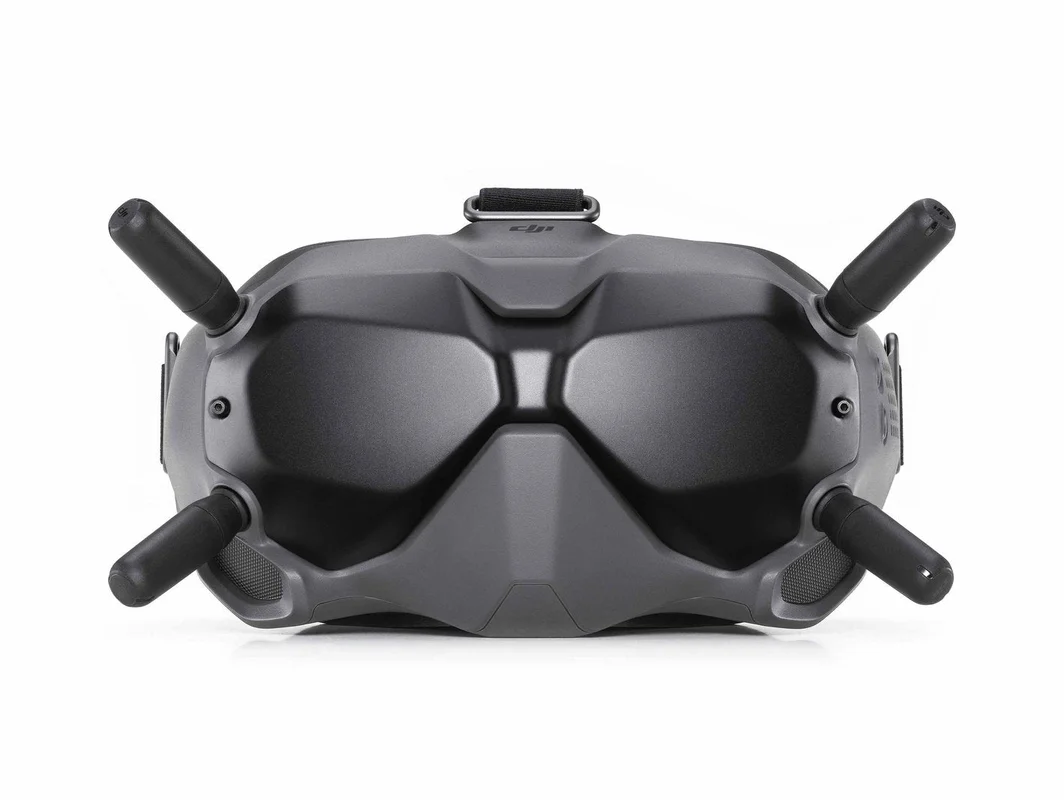

DJI’s Digital FPV Goggles V2 now includes a custom 2s 1800mAh battery, increased maximum resolution, improved high quality, and low latency modes, and now supports sd-cards up to 256GB.
Prepare for true next-generation, high definition, low latency video transmission.
Specifications:
- Weight: Approx. 420 g (headband and antennas included)
- Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
- Screen Size: 2-inch × 2
- Screen Resolution (Single Screen): 1440 × 810
- Screen Renew Rate: 144 Hz
- Communication Frequency: 2.400 – 2.4835 GHz*; 5.725-5.850 GHz
- *Only supports 5.8Ghz when used with DJI FPV Air Unit
- Transmitter Power (EIRP): 2.400 – 2.4835 GHz
- FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm 5.725-5.850 GHz
- FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
- Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
- Video Format: MP4 (Video format: H.264)
- Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
- Operating Temperature: 32° to 104° F (0° to 40° C)
- FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
- Interpupillary Distance Range: 58 -70 mm
- Supported Storage Card: microSD cards with storage capacities of up to 256GB
DJI FPV Goggles Battery
- Capacity: 1800 mAh
- Voltage: 9 V (Max.)
- Type: LiPo 2S
- Charging Temperature: 0℃ to 45℃
- Energy: 18 Wh
- Max Charging Power: 10 W
- Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
Includes:
1x DJI Digital FPV Goggles V2 (inc. foam padding)
1x DJI FPV Goggles Battery
1x DJI FPV Goggles Power Cable (USB-C)
4x DJI FPV Goggles Antenna (Dual Band)
1x Headband
1x USB-C cable
1x Sleeve
Download Manual
