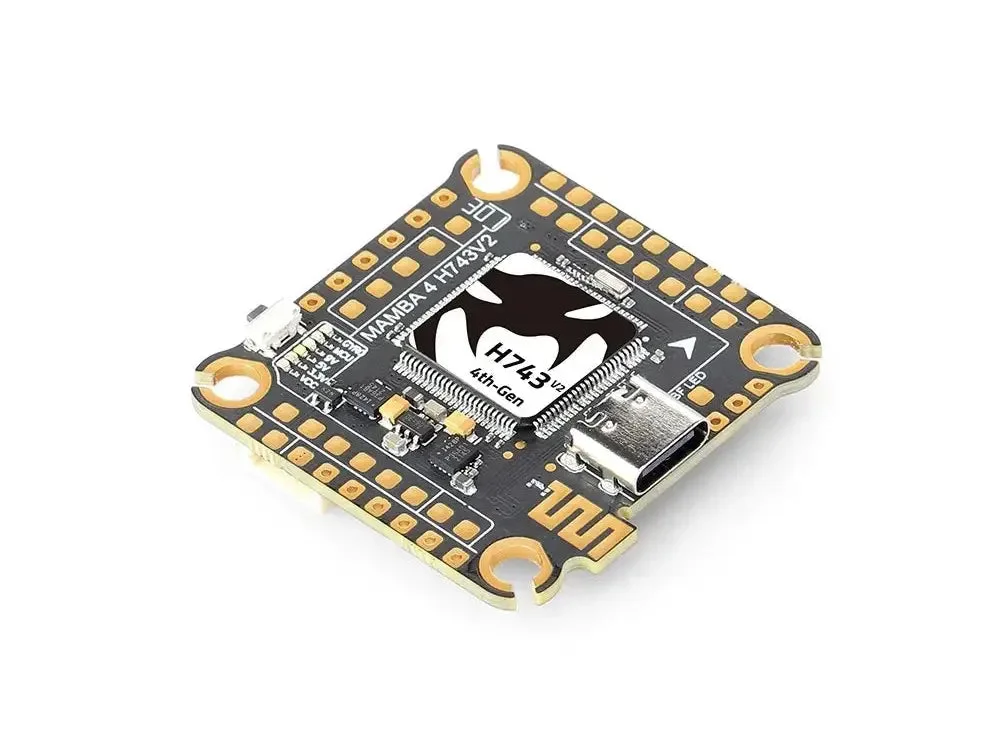

Diatone Mamba MK4 H743 V2 Dual Gyro Flight Controller

Description

The Diatone Mamba MK4 H743 V2 Dual Gyro Flight Controller features a powerful 480MHz STM32H743 MCU, 8 UARTs, 8 motor outputs, I2C, F.Port, ESC telemetry, 128M Flash Memory for blackbox, and just about anything else a user can wish for. Designed with the user in mind, the FC has large solder pads, dual ICM gyros, and 3.3V, 5V, and 9V BEC to power anything connected. A fantastic option at the heart of any build.

Specifications:

• MCU: 480MHz STM32H743
• GYRO: DUAL ICM-42688-P
• Target：MAMBA H743_2022B
• OSD: Yes
• Blackbox: 128M Flash Memory
• Barometer: SPL06
• UARTs: 8 Sets
• I2C: Yes
• F.Port: Yes
• RSSI: No
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 8 Sets
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED
• AIR UNIT Port: Yes
• WIFI: SpeedyBee APP
• VTX Switch: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A& 9V 3A
• Input: 3~6S Lipo (12.6~25.2V)
• Mounting size: 30.5mm/M3

Includes:
1x Diatone Mamba MK4 H743 V2 Dual Gyro Flight Controller
1x 8Pin sh1.0 Cable
1x Air Unit sh1.0 Cable

Download Wiring Diagram
