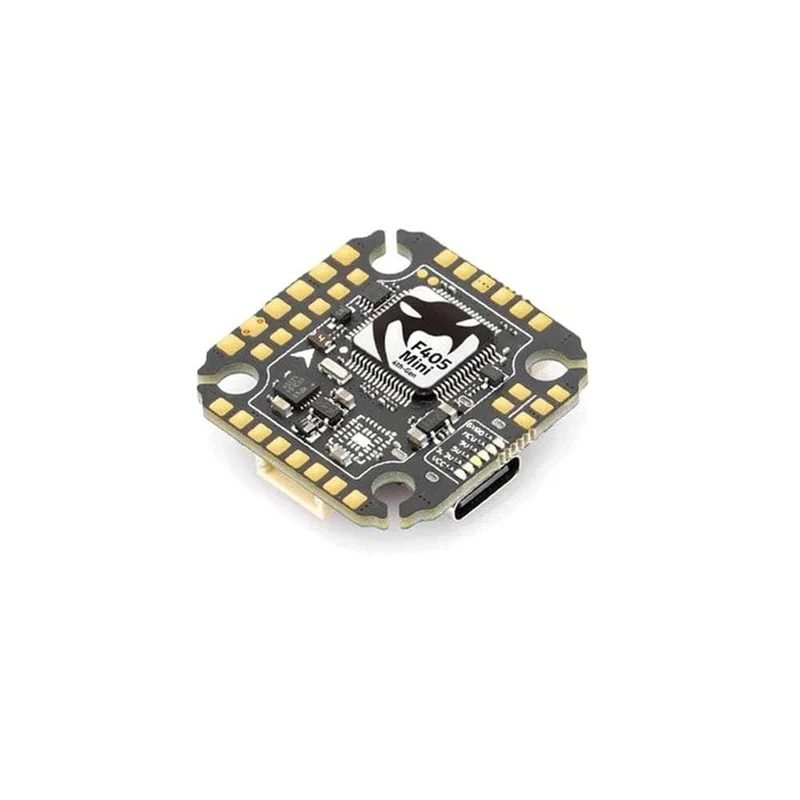

Diatone Mamba MK4 F405 Mini 20×20 Flight Controller

Description

The Mamba F405 Mini flight controller is tried and true. This has plenty of features to suit the needs of most quads and pilots. The small for factor and overall reliability make this an excellent choice for almost any build!

Check out all of our 20×20 FCs and all our Diatone Gear!

Specifications

• Input Voltage: 3-6S
• MCU: 480MHz STM32F405
• Gyro: ICM42688P
• OSD: AT7456E
• Blackbox: 16M Flash Memory
• Uarts: 6Set
• ESC Signal: 6Set
• LED Controller: BF LED
• I2C: Yes
• F.Port: Yes
• Buzz: Yes
• TVS Protection: Yes
• BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
• Mounting Pattern: 20×20 M3/M2
• Dimensions: 29×29.5×6.5
• Weight: 6g

Includes

• 1x Diatone Mamba MK4 F405 Mini 20×20 Flight Controller

Wiring Diagram
