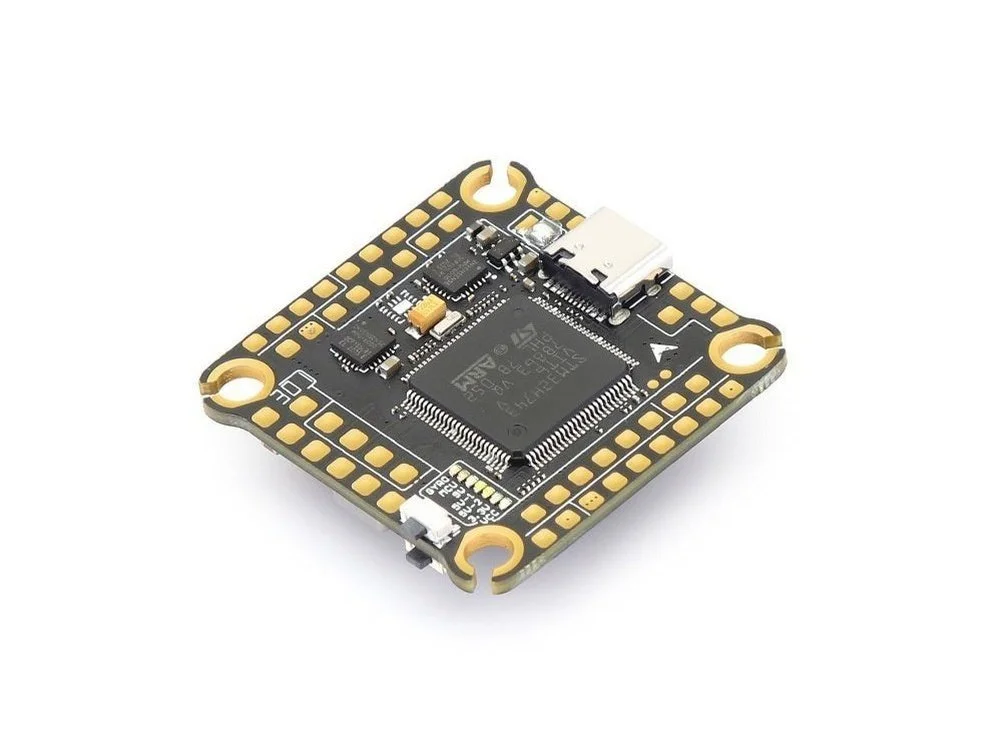

Diatone Mamba H743 MK4 Dual Gyro X8 Flight Controller

Description

The Mamba MK4 H743 X8 Flight Controller features a powerful 480MHz STM32H743 MCU, 8 UARTs, 8 motor outputs, I2C, F.Port, ESC telemetry, 128M Flash Memory for blackbox, and just about anything else a user can wish for.  Designed with the user in mind, the FC has large solder pads, dual MPU6000 gyros, and 3.3V, 5V, and 9V BEC to power anything connected. A fantastic option at the heart of any build.

Specifications:

• MCU: 480MHz STM32H743
• GYRO: MPU 6 Series DUAL
• Barometer: Yes
• OSD: Yes
• Blackbox: 128M Flash Memory
• Uarts: 8 Sets
• ESC Signal: 8 Sets
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED（4 Set 2812 LED）
• I2C: Yes
• F.Port: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC: 3.3V 0.5A& 5V 3A (System Power)& 5V 3A(LED)& 9V 3A
• MOUNTING: 30.5mm, M3

Includes:
1x Diatone Mamba H743 MK4 Dual Gyro X8 Flight Controller
