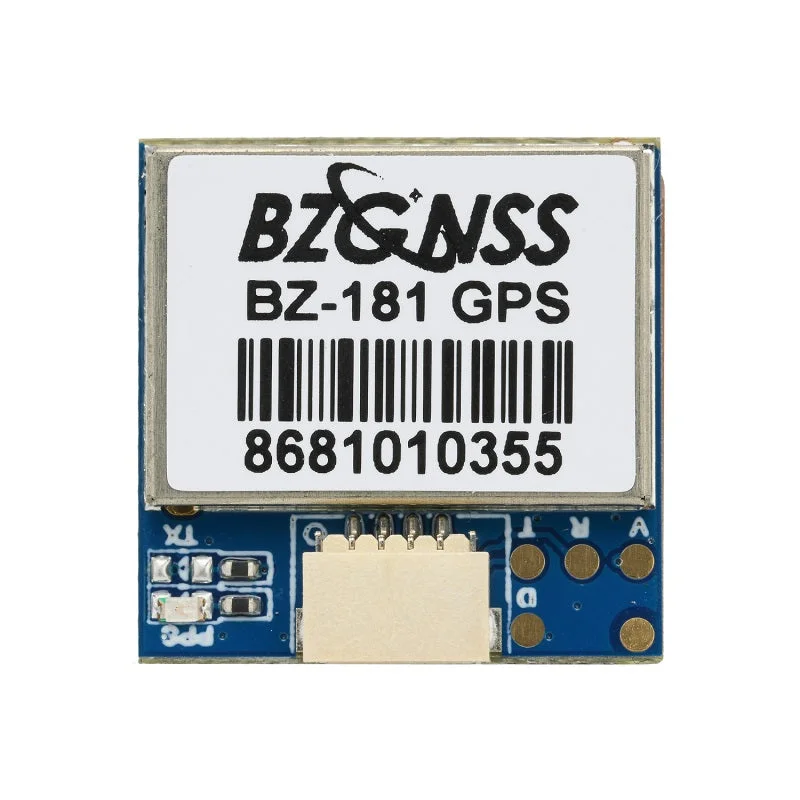

BZGNSS BZ-181 BZ-251 GPS Dual Protocol Fixed Wing Racing Drone FPV Return Rescue F4 F7 Flight Controller

Description

You can use it to F405F722 and other flight control.The chip is Ublox M10 geration that is Stronger performance. more accurate positioning.

Features:
1.Stronger performance. more accurate positioning;
2.Anti-scratch oxidation to ensure consistent positioning performance;
3.M10 Dual Protocol GPS Module;
4.Small size and Light weight:M10 chip weight is 35% smaller than M8;
5.Support BDS satellite.faster speed to search satellites;
6.Built-in battery design to avoid troubles from battery’s poor contact;

Specifications:
Chip: u-blox M10050 (ten generation chip)
Mode:GPSL.GLONASS.BDS.GALILEO.SBAS.QZSS(Default:GPS+GLONASS+BDS)
Frequency: GPSL1.GLONASS L1.BDS B1.GALILEO E1.SBASL1.QZSSL1
FLASH:support
Power:5V
Size:25mmx25mmx8mm
Interface:sh1.0 4pin
Weight:4.6g
Antenna: ceramic antenna (oil spraying process. prevent scratching and oxidation)
Receiving channels: 72 search channels
Compass:QMC5883
Baud rate:115200dps
Output protocol: NMEA/UBLOX (dual protocol)
Output frequency: 1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal positioning accuracy: 2DACC1.5m(open air)
Receiving sensitivity:Trace-162dBm
Capture -160dBm

Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C-+85’C
Storage temperature:-40°C-+105°C

Package Includes:
1 x BZGNSS BZ-181GPS/BZ-251 GPS
