Description

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: 2810

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

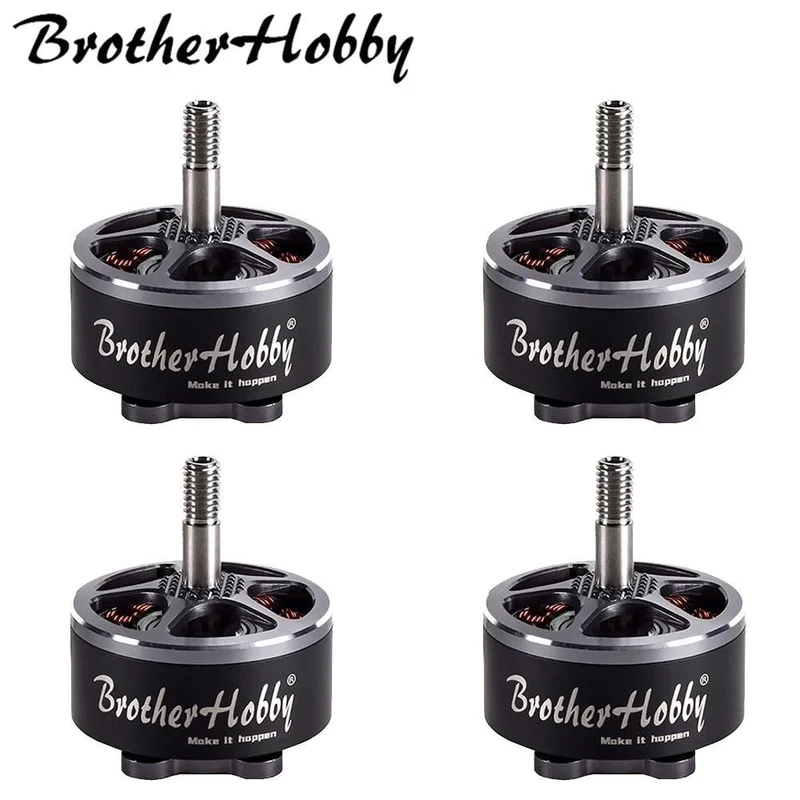

Brotherhobby Avenger 2810 Motor

Specifications
KV: 900KV/1180KV/1350KV/1500KV
No.of Cells(Lipo): 5-7S
Configuration: 12N14P
Stator: 0.2mm Kawasaki silicon steel
 Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
Bolt Pattern: M3 (19X19mm)
Bearings: Japanese NMB 12X6X4
Rotor: N52H arc magnets
Weight: 65g with 25cm SR wires
Wire AWG: 18AWG 25cm length
Bell cap: Al 7075
Base casing: Al 7075

Brother Hobby Avenger 2810 Motor: A High-Speed. Smooth-Powered Brushless Motor for FPV Multi-Copter Use. Key Specifications Include:* KV Options: 900KV. 1180KV. 1300KV. or 1500KV* Wire Gauge: 18AWG (18 gauge wire)* Length: 25cm (10 inches)* Configuration: 12Nip Bell Core* Material: Aluminum Alloy (7075 series)* Recommended Number of Lipo Cells: 4-6* Casing: NSZH Arc Design with Magnets for Propulsion

Technical Specifications for Brother Hobby Avenger 2810 Brushless Motor:* Drawing Number: 05* Specification: + KV Rating: 1180KV + Configuration: 12N14P Stator + Dimension (mm): – Length: 250mm – Height: 28mm – Width: 17.6mm* Wire Gauge: AWG 18#* Weight (g). including cable: 63.56* Idle Current at 1V (A): 1.0A* Recommended Number of Lipo Cells: Not specified

Technical Specifications for Brother Hobby Avenger 2810 Brushless Motor:
