Description

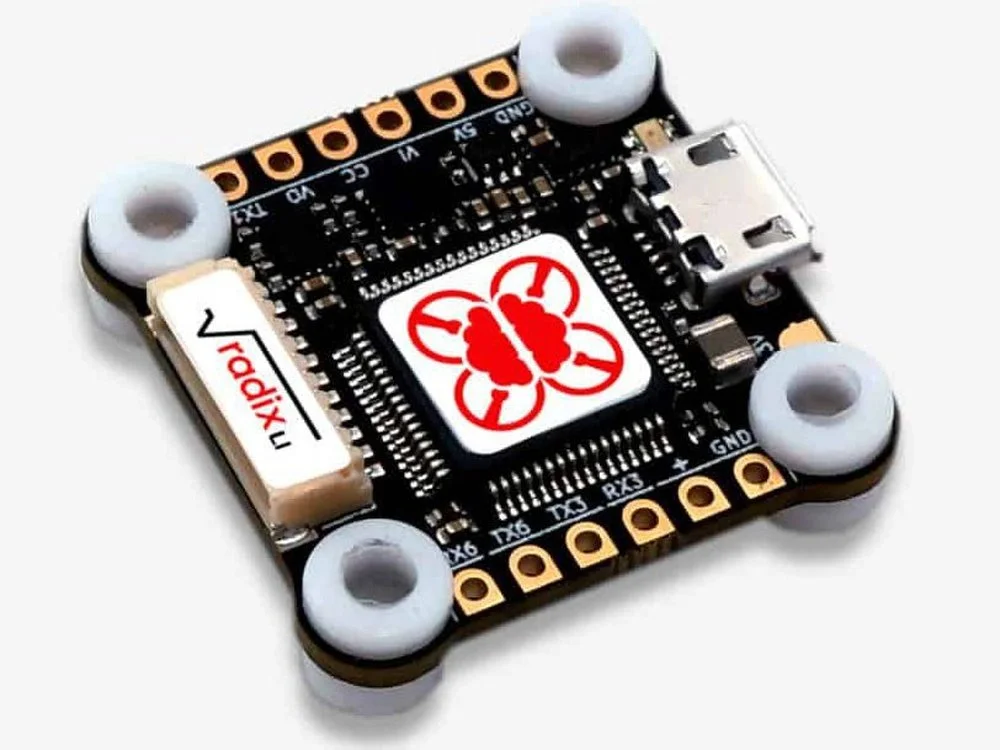

The BrainFPV Radix LI is the world’s first 20mm x 20mm flight controller with a graphical OSD. On top of the normal Betaflight OSD, RADIX LI on-screen-display gives you extra features you can’t get anywhere else. Proudly show off your pilot and team logo using the logo customizer with just a click of a button. Extra features also include a graphical barometer scale, artificial horizon, gyro spectrograph, RC stick display, 3D OSD support and more!
Compared to the original Radix, the LI is smaller, has a built-in regulator so it can be powered directly from 3s-6s power, and has had the barometer and sd card slot removed. It still features the only flight controller that uses the Bosch Sensortec BMI160 gyro, which has proven to perform better than gyros used in other flight controllers.
Specifications:
- Processor: STM32F446RET6, Coretx-M4, 32bit, 180MHz, 128kB RAM, 512kB Flash.
- IMU: Bosch Sensortec BMI160 running at 3.2kHz, connected using SPI.
- OSD: Full-graphic, PAL/NTSC auto detect, adjustable black and white levels. Full Betaflight OSD support with extra graphical features. Support for side-by-side 3D when used with a 3D FPV camera.
- Motor Outputs: 6 outputs with full DSHOT (150/300/600/1200) and OneShot support.
- Receiver
