Description
Stable output power
4 Power levels up to 1600mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
VTX telemetry with IRC Tramp protocol
Note:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Specifications:
Input voltage: 7V～34V
Interface: IPEX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 25.5×25.5mm/Φ1.6
Lightweight: 16.5g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW
PDF Instructions:
https://drive.google.com/drive/folders/1PangELyOFYp0kknmzMPgHx7xfat-Ggve
Packing List:

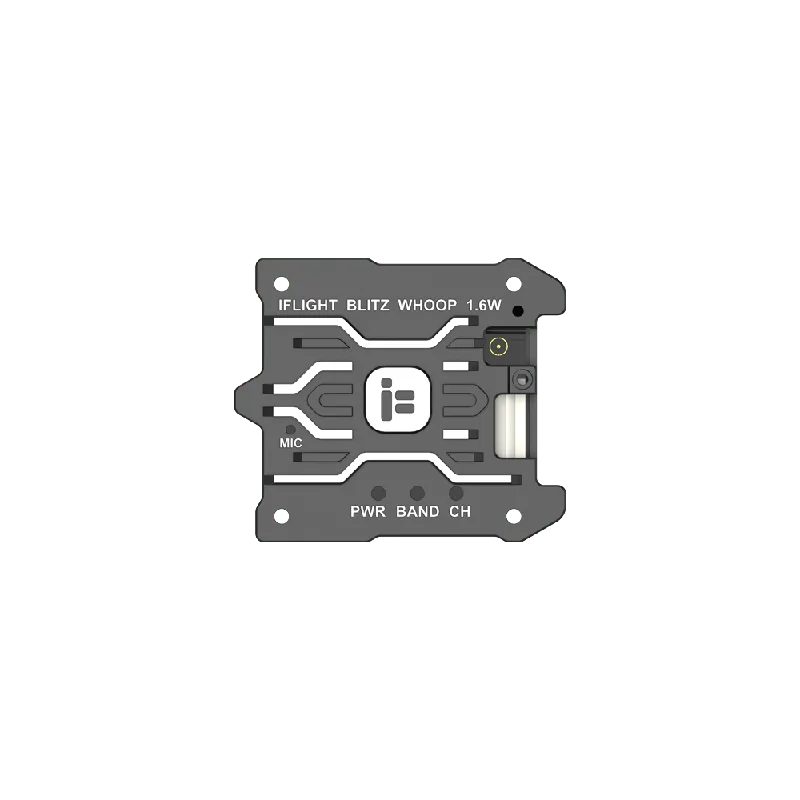

1 x BLITZ Whoop 1.6W VTX
Attention:
Please read the instructions for proper wiring before use.
It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off.
