Description
The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.
The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!
Highlights:
Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
G071 MCU, 48mHz maximum clock speed;
TDK MLCC Low ESR ceramic capacitors;
Top grade PSMN1R0-40YLD MOSFET;
8 layers double-sided PCB board
Specifications:

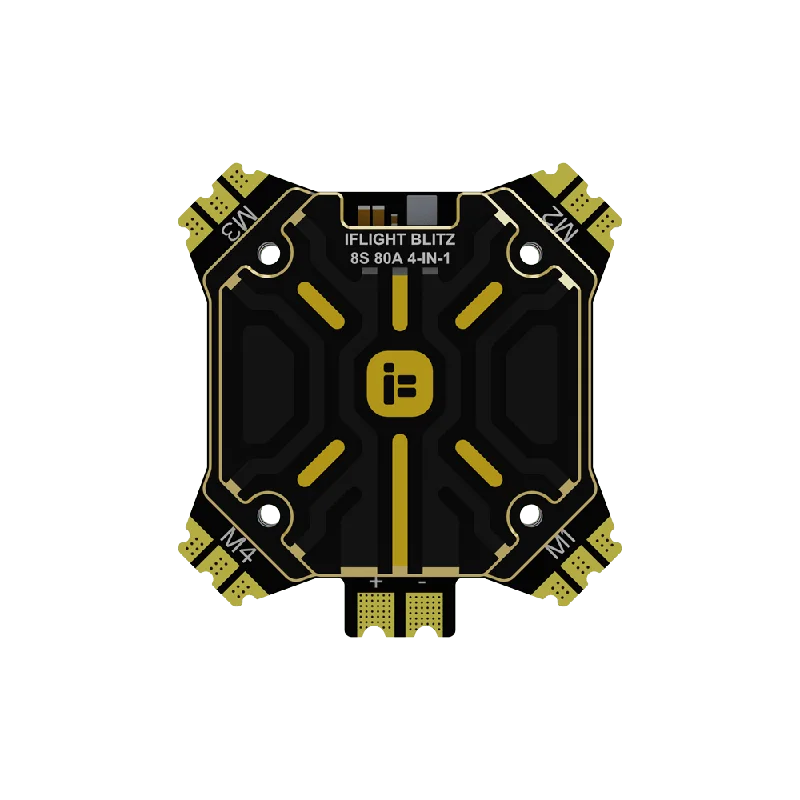

Product Name: BLITZ E80 4-IN-1 ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting Dimensions: 35x35mm/Φ3mm
Dimensions: 35x42mm
Weight: 65g(±10)
Protocal: Supports DShot DShot150/300/600/MultiShot/ OneShot etc
Packing List:
1 x BLITZ E80 4-IN-1 Pro ESC (G2）
1 x Wiring set
Wiring Diagram
https://drive.google.com/drive/folders/1l10mEOXwERfLqRun0bbHMEJoxXV2RKN2
Note:
If you want to use it for the Taurus X8 V3, Protek60 Pro, X413, or X415 frame kit, please select the “Without CNC” option.
BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases
