Model Number: BN-220 GPS

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Default shipment: GPS+GLONASS dual mode. built-in FLASH. TTL level. 9600. 1HZ output. NMEA-0183 protocol output.

Note: The BN-220 integrated module is a very small GPS+GLONASS dual-mode GPS. First-class performance.

Note: This integrated module has FLASH inside and can save the configuration. You can change the baud rate. frequency. and protocol. For customers who need to change the configuration. please tell us the output requirements in advance. we will change the configuration according to the requirements. and then ship the goods after the configuration.

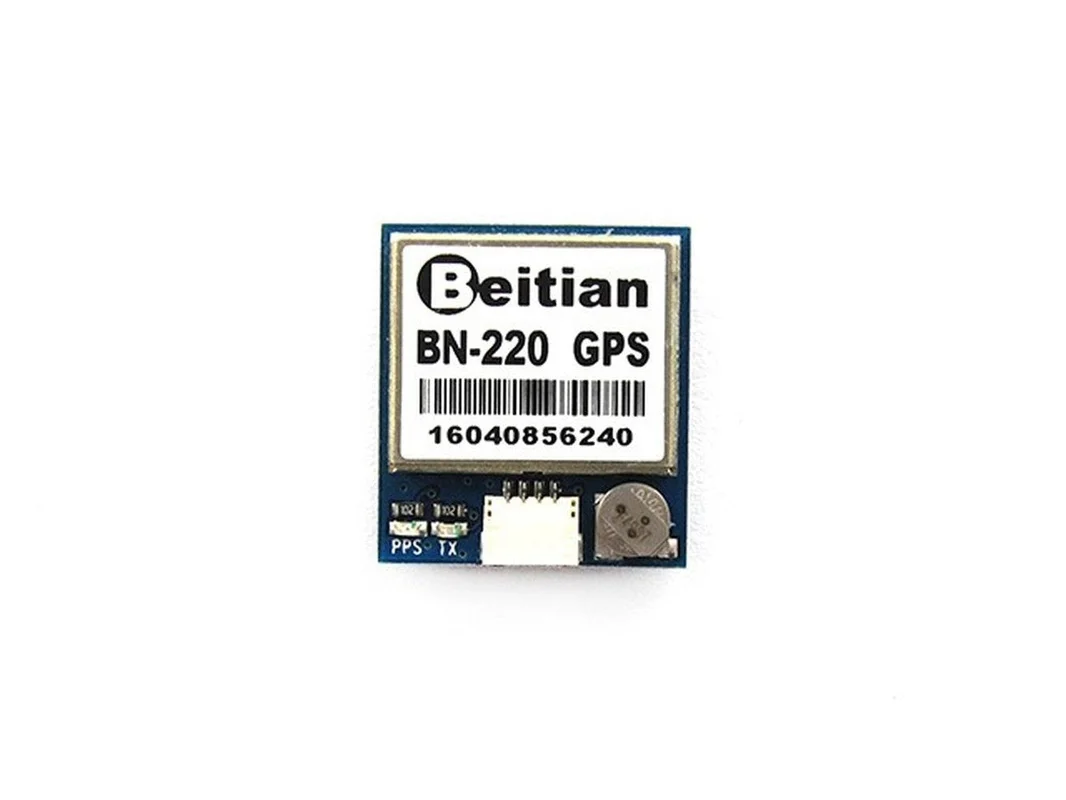

BN-220 GPS integrated module size 22mm*20mm*6mm:

Buy BN-220 GPS. free 1 connection cable. 1 double-sided tape. The pins of the module are:

1. GND. ground.
2. TX. the data output of the module.
3. RX. the data input of the module.
4. VCC. 3.0V–5.5V.

Indicator light:

1. TX light. blue light. blue light flashes when power on. indicating that there is data output.
2. PPS light. red light. the light does not turn on when it is not positioned; after 3D positioning. it starts to flash.

Parameters Table:

Examples of output information:
Unlocated output
$GNRMC..V………..N*4D
$GNVTG………N*2E
$GNGGA……0.00.99.99……*56
$GNGSA.A.1…………..99.99.99.99.99.99*2E
$GNGSA.A.1…………..99.99.99.99.99.99*2E
$GPGSV.1.1.00*79
$GLGSV.1.1.00*65
$GNGLL……V.N*7A

Output after positioning

$GNRMC.015411.00.A.2240.85230.N.11402.70692.E.0.004..150618…A*65
$GNVTG..T..M.0.004.N.0.007.K.A*3E
$GNGGA.015411.00.2240.85230.N.11402.70692.E.1.10.0.78.72.3.M.-2.5.M..*64
$GNGSA.A.3.08.27.23.09.16.11.18.26.07.31…1.43.0.78.1.20*1C
$GNGSA.A.3………….1.43.0.78.1.20*16
$GPGSV.4.1.14.04.04.067.23.07.12.318.45.08.70.230.50.09.36.294.49*73
$GPGSV.4.2.14.11.22.193.43.16.34.036.45.18.19.172.44.21.03.044.34*70
$GPGSV.4.3.14.23.52.246.47.26.17.061.38.27.67.030.49.31.11.122.42*7F
$GPGSV.4.4.14.42.46.123.42.50.46.123.41*7C
$GLGSV.2.1.07.73…46.74…47.75…41.83…38*60
$GLGSV.2.2.07.84…44.85…49….49*63
$GNGLL.2240.85230.N.11402.70692.E.015411.00.A.A*73
