Argus F722 3-6S 30×30 Stack
Please Check Out Our Other AxisFlying Products!

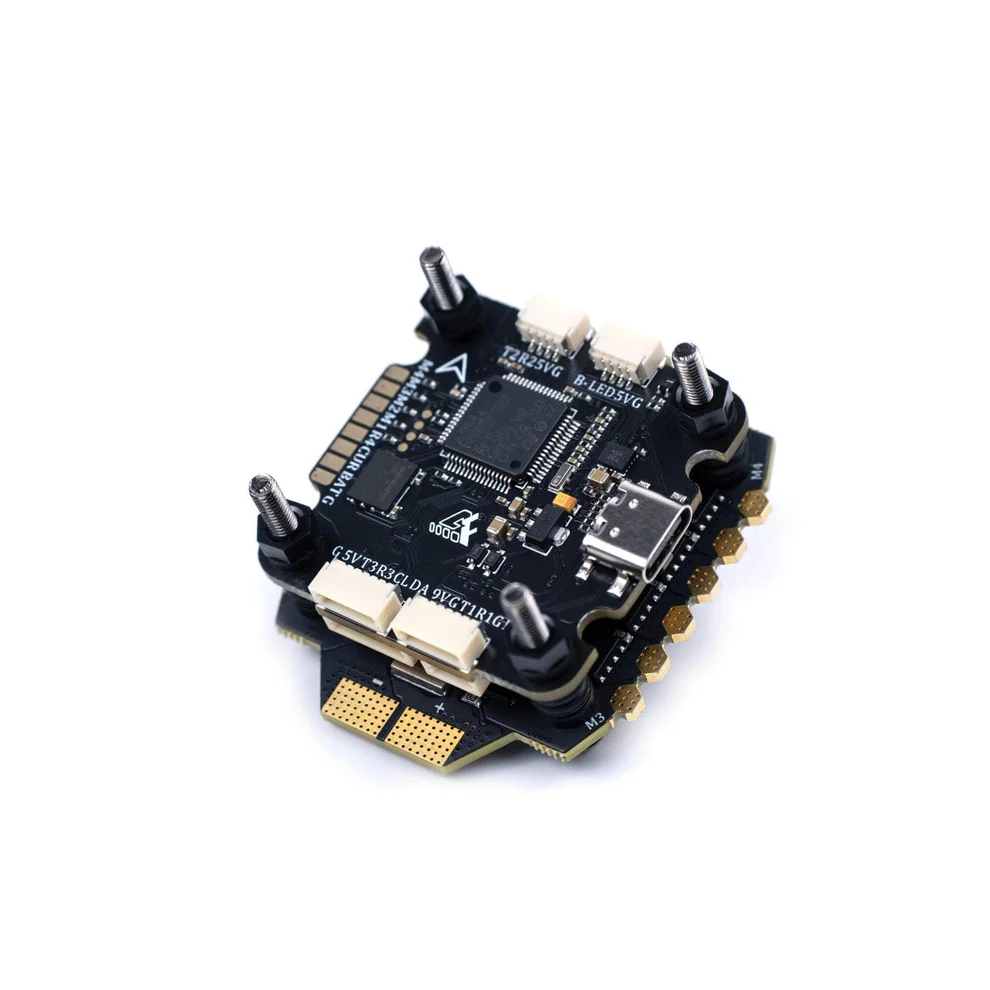

Build a powerful and reliable FPV drone with the AxisFlying Argus F7 Stack. This 30.5×30.5mm combo pairs a feature-packed F7 flight controller with a robust 55A 4-in-1 BLHeli_32 ESC, creating a high-performance core for your 5-inch freestyle, long-range, or cinematic build.
Powerful & Feature-Rich F7 FC The Argus F7 flight controller is engineered for modern FPV. It’s built around a powerful STM32F722 MCU and the high-performance BMI270 gyro for a smooth and locked-in flight experience. Connectivity is a major strength, with 6 available UARTs and a standout feature of 8 motor outputs, making this stack fully capable of powering X8 cinelifter drones. The dual BECs, including a powerful 9V/2A output, provide clean and stable power for any peripheral, including power-hungry digital FPV systems.
Robust 55A 32-Bit ESC The ESC is a true workhorse, capable of handling a massive 55A of continuous current (65A burst) on up to 6S LiPo power. Running on advanced 32-bit BLHeli_32 firmware, it delivers incredibly smooth and responsive motor control. It supports a wide PWM frequency range and full ESC telemetry, giving you the reliability and performance needed for demanding flights.
Key Features:
- Powerful F722 Processor: Effortlessly handles all modern flight firmware features, paired with a high-performance BMI270 gyro.
- 8 Motor Outputs (X8 Capable): Allows for building powerful octocopters for cinematic or heavy-lift applications.
- Massive 55A 4-in-1 ESC: Delivers a huge 55A continuous current to handle demanding motors on up to 6S.
- Digital HD Ready: A dedicated 9V/2A BEC provides the clean power needed for DJI and other digital FPV systems.
- Full 6 Hardware UARTs: Unmatched connectivity for your receiver, VTX control, GPS, and other peripherals.
- 16MB Onboard Blackbox: Provides plenty of high-speed data logging for professional-level tuning.
Specifications
Argus F722 Flight Controller
- MCU: STM32F722RET6
- Gyro: BMI270
- Barometer: Yes
- OSD: Yes
- BEC: 9V/2A, 5V/2A
- UART Ports: 6
- Black Box: 16MB onboard
- Motor Outputs: 8
- Input Voltage: 3-6S LiPo
- Mounting: 30.5x30.5mm M3
Argus 55A 32bit 4-in-1 ESC
- Continuous Current: 55A
- Burst Current: 65A
- Input Voltage: 3-6S
- Firmware: BLHeli_32 (Target: ST_G0_04)
- Current Sensor: Yes (Scale=400)
- Telemetry: Supported
- BEC: No
- Mounting: 30.5x30.5mm
- Weight: 16.2g
Includes
- 1x AxisFlying Argus F722 Flight Controller
- 1x AxisFlying Argus 55A 4-in-1 ESC
- 1x ESC to FC Wiring Harness
- 1x XT60 Power Pigtail
- 1x Capacitor
- 1x Set of Mounting Hardware
