Airbot Ori32 BLHeli32 25A 4-in-1 ESC – MyFPV

Description

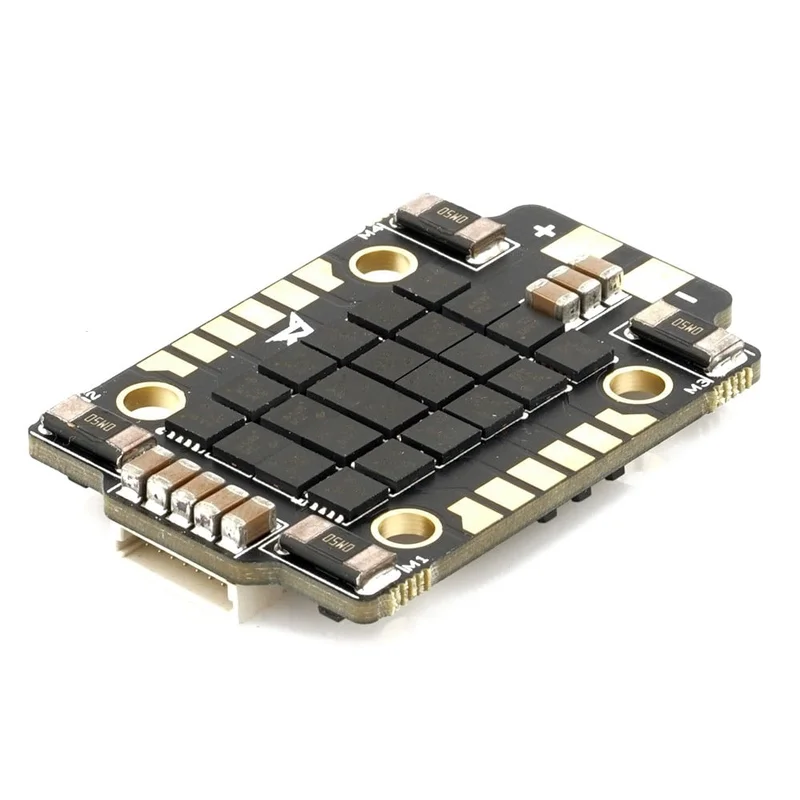

Airbot Ori32 BLHeli32 25A 4-in-1 ESC

Check out all of our Airbot Products!

Experience the smooth and powerful performance of 32-bit ESCs in a compact 20x20mm form factor with the Airbot Ori32 25A 4-in-1 ESC. This tiny yet mighty ESC is equipped with BLHeli_32 firmware and high-quality components, making it a premium choice for lightweight 3-inch to 4-inch freestyle and racing FPV drones.

Advanced 32-bit Performance

The Ori32 is powered by a fast 32-bit processor running BLHeli_32 firmware. This unlocks superior performance compared to older 8-bit ESCs, offering a smoother throttle response, support for high-speed protocols like DShot1200, and advanced features like bi-directional DShot for RPM filtering. The result is a more locked-in and intuitive flight experience.

Compact & Builder-Friendly

Designed for clean and simple installations in tight builds, the Ori32 features a 20x20mm mounting pattern and large, easy-to-solder pads. At only 7.9 grams, it’s incredibly lightweight, and the included heatsink helps to dissipate heat during demanding flights, ensuring consistent performance and reliability.

Key Features:

• Advanced BLHeli_32 Firmware: Delivers silky-smooth motor control and supports advanced features like RPM filtering for a top-tier flight feel.
• 25A Continuous Current: Provides ample, reliable power (35A burst) for most micro motors on 3S and 4S LiPo setups.
• Compact 20x20mm Form Factor: Perfect for lightweight and high-performance 3-inch to 4-inch FPV drone builds.
• Onboard Current Sensor: Provides real-time current draw information to your flight controller for OSD display and flight logging.
• Includes Heatsink: Helps keep the ESC cool during high-power maneuvers for improved reliability.

IMPORTANT: Capacitor Required

As with all high-performance ESCs, the use of an external low-ESR capacitor is required. The capacitor must be soldered to the ESC’s main power pads to protect the electronics from damaging voltage spikes.

Specifications

• Firmware: BLHeli_32
• Input Voltage: 3-4S LiPo
• Continuous Current: 25A
• Burst Current: 35A
• BEC: No
• Current Sensor: Yes
• Supported Protocols: Oneshot / Multishot / DShot (up to 1200)
• Mounting Pattern: 20x20mm
• Weight: 7.9g

Includes

• 1x Airbot Ori32 25A 4-in-1 ESC
• 1x Heatsink
• 1x XT30 Power Pigtail
• 1x ESC to FC Cable
• 1x Capacitor
