Description
4.3 Inch FPV Monitor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Size: 5 Inch
Origin: Mainland China
Model Number: Moneagle
Material: Composite Material
For Vehicle Type: Helicopters

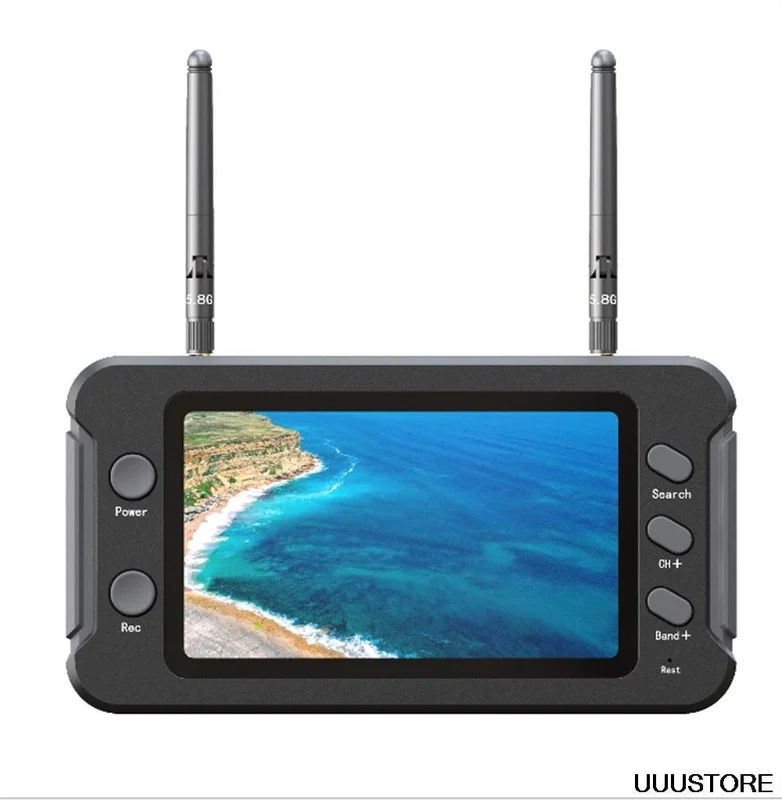

4.3 Inch IPS 800×480 5.8GHz 40CH Diversity Receiver FPV Monitor HD Display For RC Drone Radio Controller
:
Size of Display: 4.3 Inches
Glass Material: IPS High luminance.all viewing angle
Clarity of Display: 800x480px
Receiver: Diversity Receiver
Receiving Frequency Channel Numbers: 40
DVR System: Autonomous System
DVR Function: Supporting Replay
DVR Mode: VGA/D1/HD available
Storage Medium: TF Card
Storage Standard: C10.Maximum supporting 64G
Loudspeaker: High fidelity.stereo speakers
Material of Battery: 3.7V Polymer battery
Battery Capacity: 1200mAh
Continuous Working Hours: >3 hours
Size of Product: 145x80x13mm (without antenna)
Weight: 165g
Charging Input Mode: USB Charging Mode
Input Voltage: DC 5-23V. wide voltage input range.which can be powered by lipo battery 2-6S
Features:
– 5.8G 40CH true diversity receiver
– Ultra-high luminance.800x480px HD screen
– One-Key-Auto search.simple operation
– 360 degree all-view HD display
– Three video recording modes: DVR(VGA/D1/HD)
– Built-in 1200mAh high capacity battery
– Support DC 5-23V wide voltage
– Support 2-6S lipo battery.very suitable for long time flight
– Support up to 64G TF card
– Support video replay
– Support english language
Frequency Table (MHz):
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 |
5732 |
5769 | 5806 | 5843 | 5880 | 5917 |
Package Included:
1x 5.8GHz 40CH 4.3 Inch FPV Monitor
